■ Application: PV solar(or other similar usage)

  ■ Energy Measurement:

        kWh(2 directions), kvarh(2 directions)

        U, I, P, Q, S, PF, F

  ■ LCD Display, Back linght

  ■ Max. demand value

  ■ Communication: RS485 interface

  ■ Din rail mounted meter

■ Connection types: 1 phase

■ Input voltage: AC 220V

   Frequency: 45~65Hz

   Power consumption: < 0.5 VA(every phase)

■ Input current:

           Provided without CT: 5A

           Provided with CT: 80A/26.7mA; 120A/40mA, 200A/66.66mA

   Starting current: 1‰Ib(1.0 class), 4‰Ib(2.0 class)

   Consumption: < 1 VA(every phase)

■ Accuracy:

           kWh: 1.0  class

           kvarh: 2.0  class

■ Power supply:AC 85~265V

   Consumption: < 10 VA

■ Range of measuring: 000000.00~99999999kWh

■ Communication: Interface RS485

■ Work environment:

           Work temperature: -25℃~55℃

           Relative humidity: ≤95%(No condensation)

           Altitude: <2000m

Basic model:

        Provided without CT:

                ACR 10R –  E

        Provided with CT:

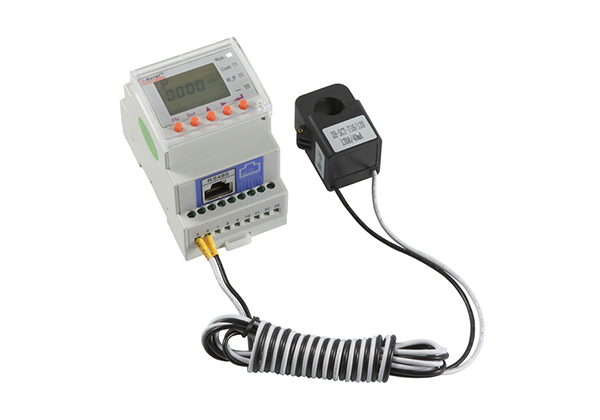

                ACR 10R –  D x x E

                   x x– type of current transformer

                       D10 – φ10mm : Max.80A

                       D16 – φ16mm : Max.120A

                       D24 – φ24mm : Max.200A

Optional function:(Place as your technical requirements)

        Quick reaction: S

        Alarm: J

        Digital input/output: K

        Tariff: F

        Event Record: SOE

        Pulse output(Q-ty: 2): 2EP

        Max. demand value: D

        Ethernet communication: RJ45

    Notes: RS485 interface has been equipped.

Selected model:

        ACR10R - D16E - KJ
