■ Measurement:

        kWh(2 directions), U, I, P

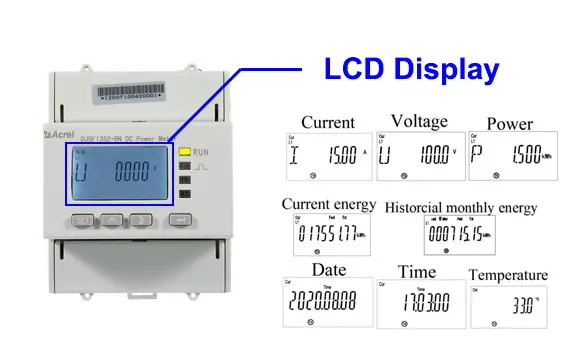

  ■ LCD Display, Back linght

  ■ HMI, programable buttons, Back linght

        Code, Protocol, Address, Baud rate

  ■ Din rail mounted meter

■ Input voltage: DC 0-1000V

   Overlord: 1.2 times, works.

                   2 times, 1s.

   Power consumption: < 0.2 VA

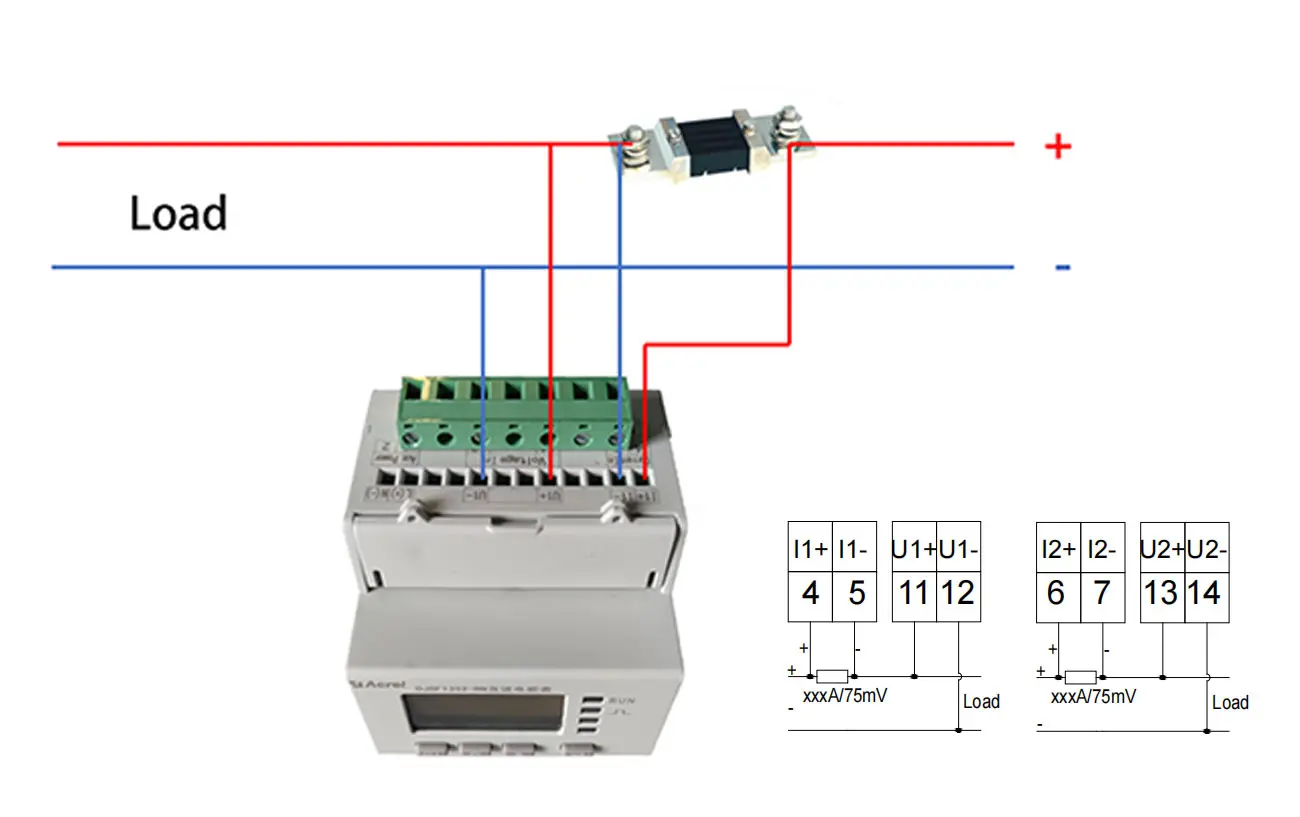

■ Input current: 0-75mV(shunt)

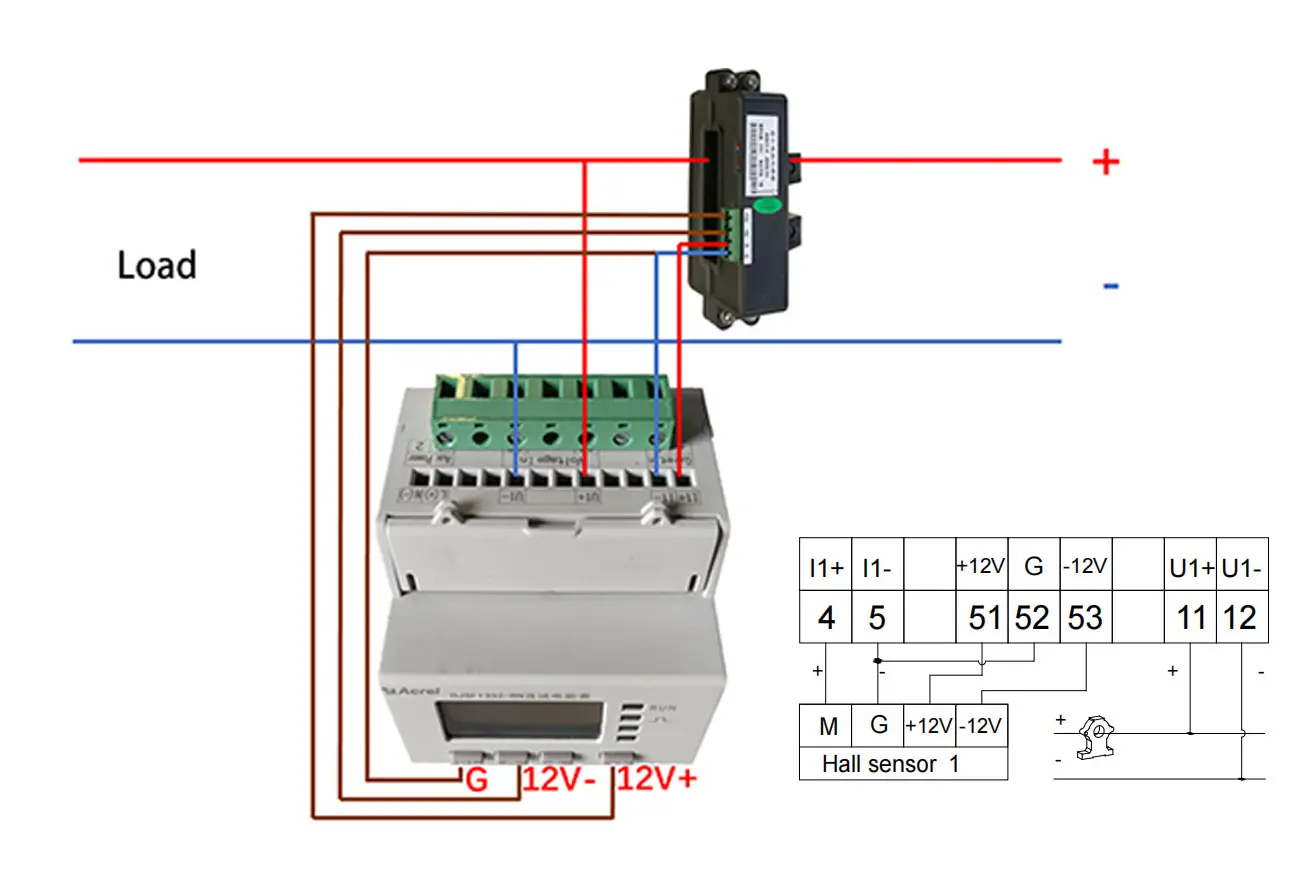

                         0-20mA, 4-20mA, 0-5V, 0-10V(hall sensors)

   Consumption: < 0.1 VA

■ Accuracy:

        kWh: 1.0  class (or 0.5  class)

■ Communication: Interface RS485, Protocol MODBUS-RTU, 1200bps~19200bps

                              Second RS485 Interface(by option)

■ Range of measuring: 000000.00~99999999kWh

■ Digital input: quantity: 2

     Digital output: quantity: 2, 2 A/30 V DC or 2A / 250 V AC

■ Active energy pulse

■ Power supply: AC/DC 85-265V

                          DC 12V(±10%)

                          DC 24V(±10%)

                          DC 48V(±10%)

      Consumption: 3 W

■ Circle life: >50000h

■ Work environment:

           Work temperature: -25℃~55℃

           Relative humidity: ≤95%(No condensation)

           Altitude: <2000m

Basic model:

        DJSF1352-RN

        There is 1 port of RS485 in meter.

Optional function:(Place as your technical requirements)

        Digital input/output: K; Second port of RS485: 2C (either)

        Second port of DC current Input: D

        0.5 class accuracy: S

        Power supply:

                No letters: AC/DC 85-265V

                DC 24V, 48V - P1

                DC 12V - P2

Remarks:

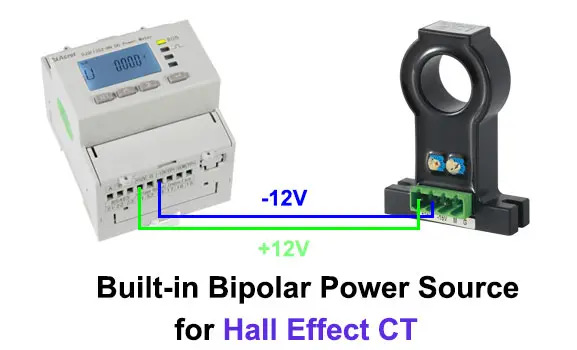

1. When you place D, if meter connects with 2 pcs hall sensors, you have to place a power supply to the second hall sensor.

2. When you place S, current input can only be 0-75mV, S and K can be chosen only one.

3. When you place P2, current input can only be 0-75mV, S and P2 can be chosen only one.

Selected model:

        DJSF1352-RN K S P1
