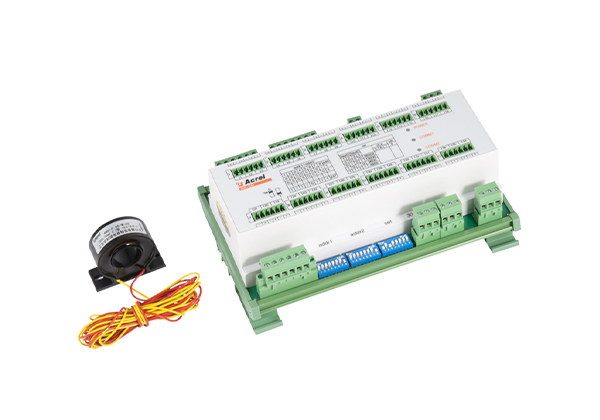

AMC16Z-ZA Multi-Circuit Power Monitoring Device

■ Application: Data center power monitoring

■ Measurement: U, I, P, Q, PF, kWh, kvarh

Incoming line(Max. 2 circuits);

Outgoing line(1-phase/3-phase Max. 36 circuits/12 circuits)

■ 1 port of digital output

■ Max. 2 ports of RS485, Modbus RTU protocol

■ Power supply: AC 220V & DC 48V

■ DIN rail mounting type

Email: yara@acrel-electric.com

Tel: 8618702108363

Whatsapp: 8618702108363

AMC16Z-ZA Multi-Circuit Power Monitoring Device

AMC16Z_Multi_Circuit_Metering_ManuaL.pdf

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Technical Parameters

This is an integrated solution for monitoring multi-circuits and mains by using a single meter. The meter is designed for use in both new build and reconstruction and is used for critical power operations in data centers and energy management in buildings. The ideal solution for data center managers, energy or facility managers, engineers, and operational executives who are responsible for delivering power to critical applications

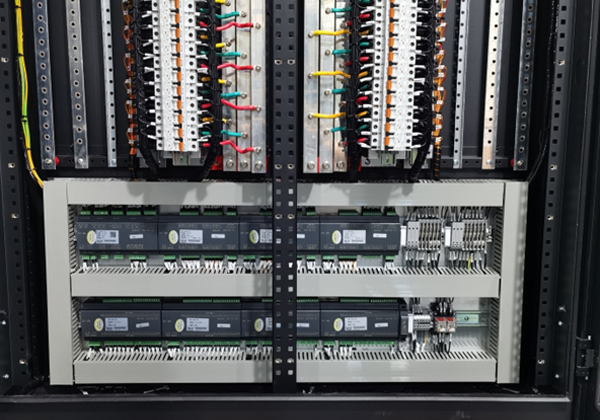

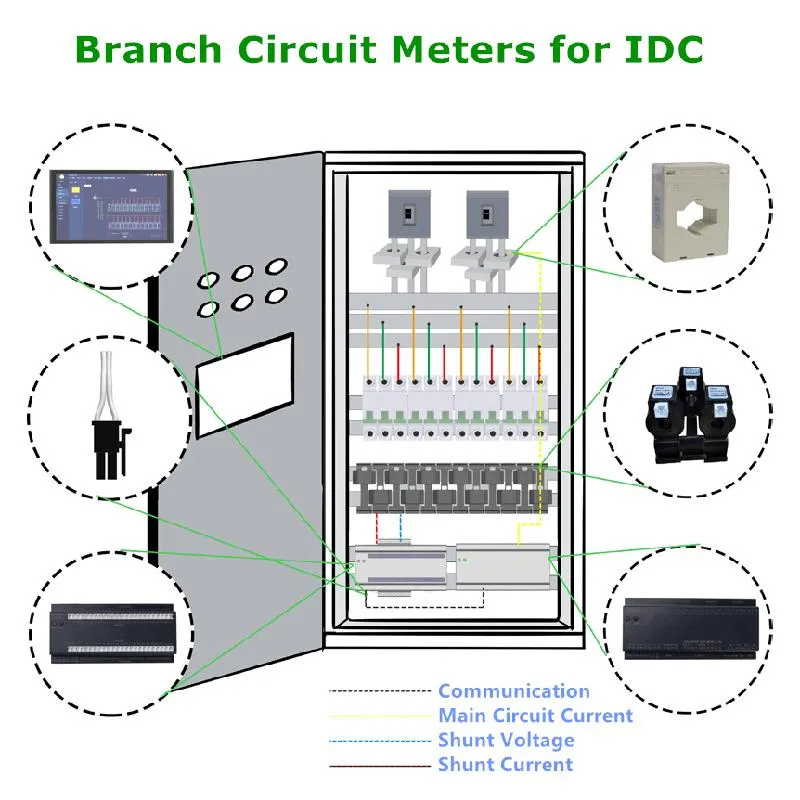

AMC16Z series AC branch circuit power meter can be used for building low-voltage distribution multi-circuit monitoring, especially for data center IT cabinet monitoring.

It offers class 1 (1 %) power and energy system accuracy (including 50 A to 400 A CTs) on all branch circuits.

Benefits

☆ Flexible modules can be arbitrarily assembled to accommodate any PDU solution.

★ Support new construction and renovation projects. It has the advantage of flexible assembly to respond to special power distribution detection schemes.

Advantage

☆ Applicable to any PDU solutions scheme for new construction and renovation

★ Class 0.5 system accuracy

☆ RS485 port

★ Small volume

☆ Convenient installation

★ Flexible assembly

☆ Construction convenient

Standards

☆ IEC61010-1

★ IEC62053-22 class 0.5

Internet Data Center AC Incoming Circuit Monitor Meter Module

Parameter		AMC16Z-ZA	AMC16Z-FAK24/48	AMC16Z-ZD	AMC16Z-FDK24/48	AMC16Z-KD
Phase		AC		DC		AC/DC
Channel		2	24/48	2	24/48	48
Measure		U, I, P, Q, S, F, PF, EP, EQ,		U, I, P, E		/
		Neutral ground voltage, Neutral current, Total Harmonic content, 2-63rd Harmonic, Voltage phase sequence	2-63rd Harmonic
Bus Voltage	Rated Input	220V AC		48V DC, 240V DC, 336V DC
	Measure Range	85-280V AC		±20%
	Overload	Instantaneous voltage 2 times/sec
Current Loop	Rated Input	5A	50mA	5V
	Overload	Continuous current 1.2 times, Instantaneous current 10 times/second
Frequency		45-6Hz		/
Accuracy		U, I: 0.2 EP: 0.5 EQ: 1		U, I: 0.5 E: 1
Auxiliary Power		signal power(≤15W)	12-24V DC	signal power(≤15W)	12-24V DC	12-24V DC
Insulation resistance		100MΩ
Power frequency withstand voltage		Power/Input Signal between ports AC 2KV/1min 50Hz
Environment	Temperature	Working: -15ºC~55ºC Storage: -25ºC~70ºC
	Humidity	Relative humidity ≤ 93%
	Altitude	≤ 2500m
Switch Value Output		2 channels 3A 250VAC / 3A 30VDC	/	2 channels 3A 250VAC / 3A 30VDC	/	/
Switch Value Input		6 dry contacts	24 / 48 -way wet contact	6 dry contacts	24 / 48 -way wet contact	48 dry contacts
Communication		RS485 Modbus-RTU
Installation		Din-rail or Wall-mounted
Protection level		IP20
Pollution level		2
Safety	Insulation	The insulation resistance between all terminals and the conductive parts of the housing is not less than 100MΩ
	Pressure resistance	Signal input, relay output, rs485 communication/leakage/temperature/humidity/auxiliary power supply/switch input together, AC2KV/1min, leakage current less than 2mA, no breakdown, and flashover
Electromagnetic Compatibility	Anti-static interference	4 grade
	Immunity to fast transient bursts	3 grade
	Anti-surge interference	4 grade
	Resistant to radiofrequency electromagnetic field radiation	3 grade

1. 2DO
2. Standby current
3. Standby voltage
4. Main current
5. Main voltage
6. Communication & 24V DC power output
7. Leakage current
8. Temperature and humidity
9. 6-channel passive DI

Characteristics
☆ High integration, used for monitoring main and standby circuit, 2-channel 3 phase AC inlet.
★ Output 24V to supply power to the outlet module, which can operate without extra power supply and relay.
☆ IEC class 1 metering
★ VIA(mA)/ P/ Kwh class 0.5, Q/ Kvarh class 1.
☆ Branch power and energy measurements fully meet ANSI and IEC Class 1 accuracy requirements.
★ PQ: Basic power quality data is obtained by measuring the percentage of total harmonic distortion through voltage and current.
☆ Design fits any PDU or RPP solution.
★ Support new construction and renovation projects.
☆ Communicate with various systems:1-channel RS485 port, Modbus-RTU.
★ Compatible with AMC precision distribution management system.
☆ It is easy to centrally collect equipment data and turn it into useful decision information.
