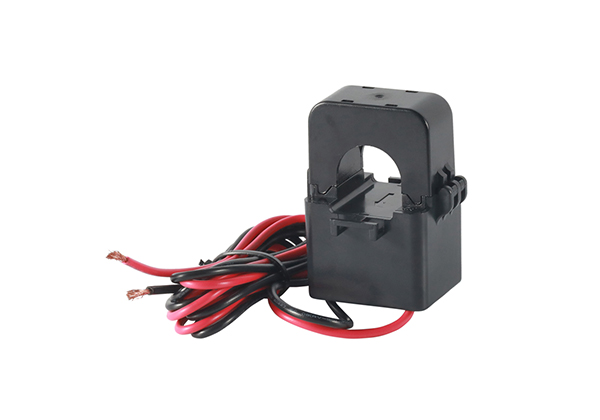

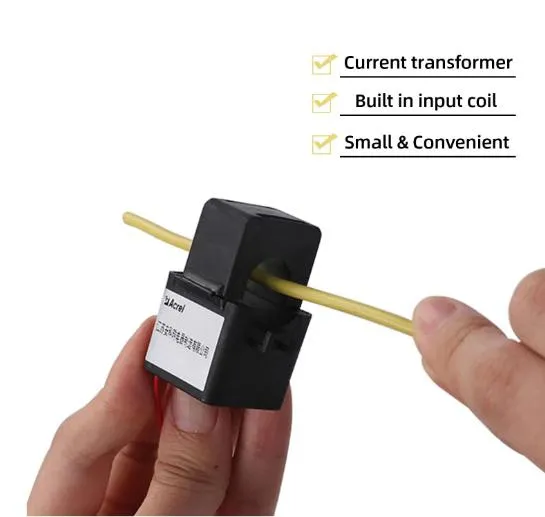

AKH-0.66/K (mA Output) Split Core Current Transformer
● Measurement: Alternating Current (AC)
● Accuracy: Class 0.5
● Primary Current Input: 5~600A AC
● Application: Above cable
● Rated Voltage: 660V AC(0.69 kV)
● Rated Frequency: 50~60Hz
● Standard&Certificate: CE
Series Overview
| Model Name | Current Ratio (Primary/Secondary) | Accuracy Class | Rated Load (VA) | Perforation Hole Size (mm) |
|
AKH-0.66/K-φ10 |
5A/1.25mA | 0.5 | 10 | φ10 |
| (10~20)A/5mA | ||||
| (40~60)A/20mA | ||||
| AKH-0.66/K-φ16 | (20~50)A/10mA | φ16 | ||
| (40~100)A/20mA | ||||
| 100A/40mA | ||||
| AKH-0.66/K-φ24 | (60~200)A/20mA | φ24 | ||
| (100~250)A/40mA | ||||
| 400A/100mA | ||||
| AKH-0.66/K-φ36 | (100~200)A/10mA | φ36 | ||
| (200~400)A/20mA | ||||
| (300~600)A/100mA | ||||
| 400A/40mA | ||||
| 600A/75mA | ||||
| AKH-0.66/K-φ50 | (600~800)A/100mA | φ50 |

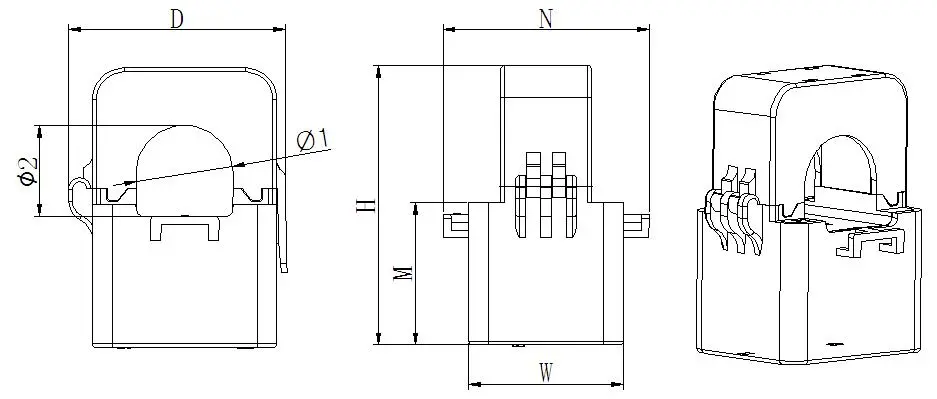

▋ Dimension
| Model Name | Outline Size (mm) | Perforation Size (mm) | Tolerance (mm) | |||||
| W | H | D | M | N | φ1 | φ2 | ||
| AKH-0.66/K-φ10 | 27 | 40 | 26 | 24 | 36 | 10 | 9 | ±1 |
| AKH-0.66/K-φ16 | 31 | 50 | 29 | 28 | 42 | 16 | 17 | |
| AKH-0.66/K-φ24 | 39 | 71 | 46 | 36 | 52 | 24 | 23.5 | |
| AKH-0.66/K-φ36 | 42.5 | 82 | 58 | 40 | 56 | 33.5 | 35 | |
| AKH-0.66/K-φ50 | 46.5 | 110 | 90 | 54 | 66.5 | 47 | 52 | |
▋ Installation Instruction

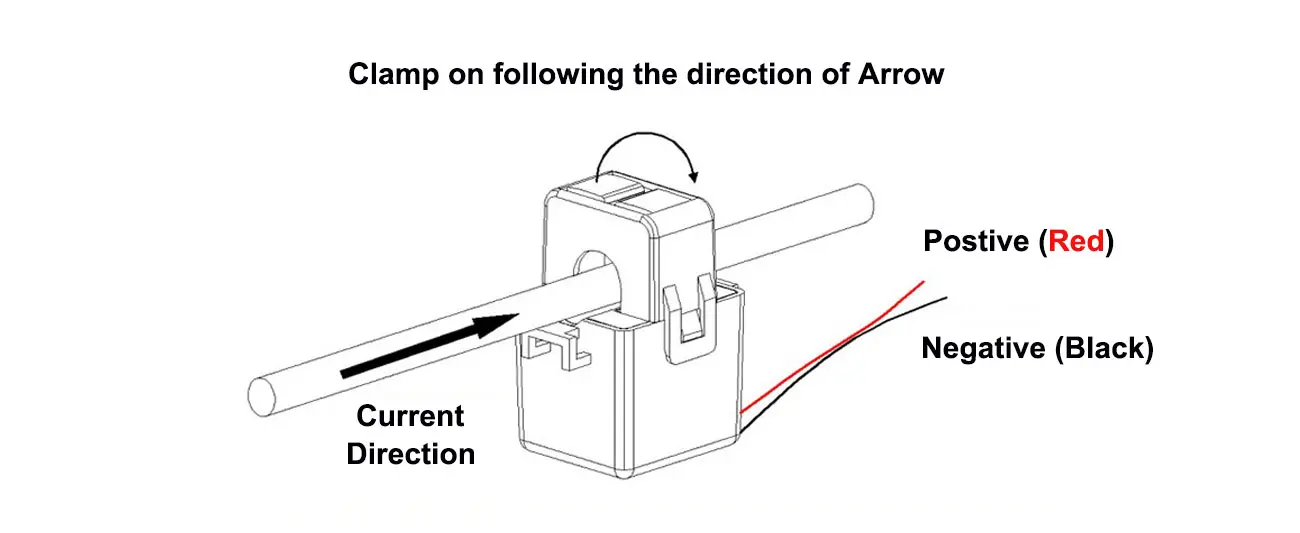

Installation Instruction of AKH-0.66/K-φ Series Split Core CTs
▋ Work Site Application
Work Site Application of AKH-0.66/K-φ Series Split Core CTs
Basic model:
AKH-0.66/K - Series No.
Type: K-φ10, K-φ16, K-φ24, K-φ36, K-φ50
Current Ratio: eg: 200/20mA
Selected model:
AKH-0.66/K K-φ24 200/20mA
0.5 class
Notes: if you need more higher accuracy, please contact with us before placing orders.
Selection table please check document at website.
|
Spcification |
Rared Current Ratio |
Precision Degree |
Straight- |
Max. cable |
|
|
0.5 |
1 |
||||
|
K-Φ10 |
5A/1.25mA |
10 |
|
1 |
Φ10 |
|
5A/2.5mA |
10 |
|
|||
|
(40-60)A/20mA |
10 |
|
|||
|
(50-60)A/50mA |
|
10 |
|||
|
K-Φ16 |
(20-50)A/10mA |
10 |
|
1 |
Φ16 |
|
(40-100)A/20mA |
10 |
|
|||
|
(80-120)A/40mA |
10 |
|
|||
|
100A/50mA |
10 |
|
|||
|
K-Φ24 |
(50-100)A/20mA |
10 |
|
1 |
Φ24 |
|
(100-300)A/40mA |
10 |
|
|||
|
(100-300)A/50mA |
10 |
|
|||
|
(200-400)A/100mA |
10 |
|
|||
|
K-Φ36 |
(100-200)A/20mA |
10 |
|
1 |
Φ33 |
|
(100-600)A/40mA |
10 |
|
|||
|
(100-600)A/50mA |
10 |
|
|||
|
(200-600)A/100mA |
10 |
|
|||
|
K-Φ50 |
(400-600)A/50mA |
10 |
|
1 |
Φ50 |
|
(300-1000)A/100mA |
10 |
|
|||
