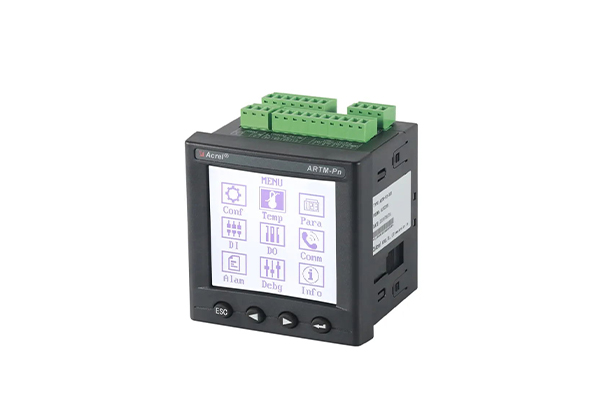

ARTM-Pn Temperature Data Display

■ Temperature Data Display: up to 60 ATE temperature sensors' data

■ Range of Measurement: -50℃~+125℃

■ Communication: MODBUS-RTU, RS485 port

■ Digital Outputs&Inputs: q-ty: 2 & 4

■ Power Supply: Battery or CT Sensing Power

■ Electric Parameter Meausurement: U,I,P,Q,F,S (Optional)

■ Certificate: CE

8615000363786

juliana@acrel-electric.com

8615000363786

ARTM-Pn Temperature Data Display

CE RED.pdf

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Application Objectives

Remote temperature monitoring system for electrical contacts of switchgear, ring main unit,GCK,transformer or any other electric devices aiming for the safe use and real-time temperature monitoring while with prompt over-temperature alarm.

The temperature monitoring devices are installed in switchgears with voltage from 0.4 to 35 kV in places of contacts, busbars, transformer inputs, cables and their joints with busbars.

It is recommended for using at especially critical facilities, switchgear and switchgear with sudden temperature changes, subject to vibration, electrical installations with an ending service life or an exhausted service life.

Technical Parameters

Rated input	Wiring mode	3P or 3P +N
	Voltage	100V/400V
	Current	5A
	Frequency	50Hz
Accuracy	Current/Voltage	0.5 class
	Active power	0.5 class
	Reactive power	0.5 class
	Energy	0.5 class
Power supply		AC85~265V or DC100~300V
Power Consumption		8W
Communication	Protocol	Modbus-RTU
Communication	Baud rate (bps)	2400, 4800, 9600, 19200
Working environment	Temperature	-20℃~55℃
	Humidity	≤95%
	Atmosphere pressure	86kPa~106kPa
MTBF		≥50000 h

Communication Structure

■ Data transfers to the automatic control system by Modbus RTU or Modbus TCP protocols.

Model Selection

ARTM - Pn - X1 - X2

ARTM - Temperature Data Display

Pn - q-ty of measurement points, Max. P60

X1 - Type of sensor: ATE100M, ATE200, ATE200P, ATE400

X2 - E or empty, E - energy measurement

Selected model:

ARTM - P30 - ATE400
