ATE200/ATE200P Wireless Temperature Sensor

■ Application: Switchgear, Busbar, Electric contact, Cable joint, and etc.

■ Range of Measurement: -50℃~+125℃

■ Communication: GFSK Wireless Communication, 433 Mhz

■ Power Supply: Battery or CT Sensing Power

■ Certificate: CE

8615000363786

juliana@acrel-electric.com

8615000363786

ATE200/ATE200P Wireless Temperature Sensor

CE RED.pdf

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Application Objectives

Remote temperature monitoring system for electrical contacts of switchgear, ring main unit,GCK,transformer or any other electric devices aiming for the safe use and real-time temperature monitoring while with prompt over-temperature alarm.

The temperature monitoring devices are installed in switchgears with voltage from 0.4 to 35 kV in places of contacts, busbars, transformer inputs, cables and their joints with busbars.

It is recommended for using at especially critical facilities, switchgear and switchgear with sudden temperature changes, subject to vibration, electrical installations with an ending service life or an exhausted service life.

Application

Residential Communities

Solar PV

Customer Story

SunTower Project

The Sun Tower project in Bangkok deployed a cloud-based solution with meters, gateways, and platform to enable remote electricity monitoring, real-time fault alerts, automated meter reading, and energy analysis across office and commercial floors.

LEARN MORE

EV Charger Project

The project for Chargers in Spain deployed the Acrel DJSF1352-RN/D DC meters, ADL200 single-phase meters, and ADL400 three-phase meters, providing integrated energy monitoring and management solutions with a total project value of approximately $250,000.

LEARN MORE

Technical Parameters

ATE200:

Working Environment	Temperature	-40℃~125℃
	Humidity	≤95%
	Atmospheric pressure	86kPa~106kPa
Wireless temperature sensor ATE200	Communication frequency	433 MHz
	Communication distance	100m in open area
	Frequency of data collector	25s
	Transmitting frequency	25s-5min
	Power supply	Battery
	Installation	Magnetic/bolted
	Range of measurement	-50℃~+125℃
	Precision	±1℃
	Application	Joints in high or low voltage switchgears
	Battery life	No less than 5 years

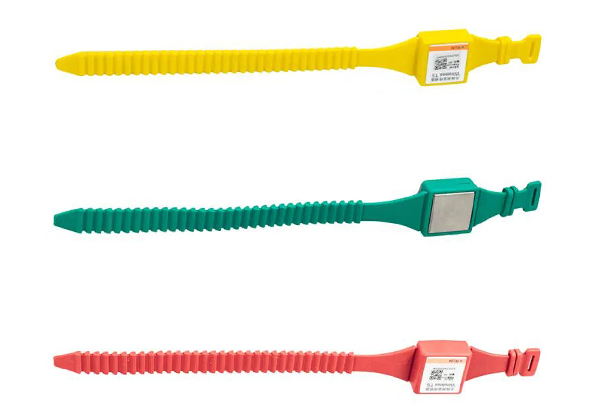

ATE200P:

Working Environment	Temperature	-40℃~125℃
	Humidity	≤95%
	Atmospheric pressure	86kPa~106kPa
Wireless temperature sensor ATE200P	Communication frequency	433 MHz
	Communication distance	100m in open area
	Frequency of data collector	25s
	Transmitting frequency	25s-5min
	Power supply	Battery
	Installation	Belted
	Range of measurement	-50℃~+125℃
	Precision	±0.5℃
	Application	Joints in high or low voltage switchgears
	Battery life	No less than 5 years
	IP degree	IP68

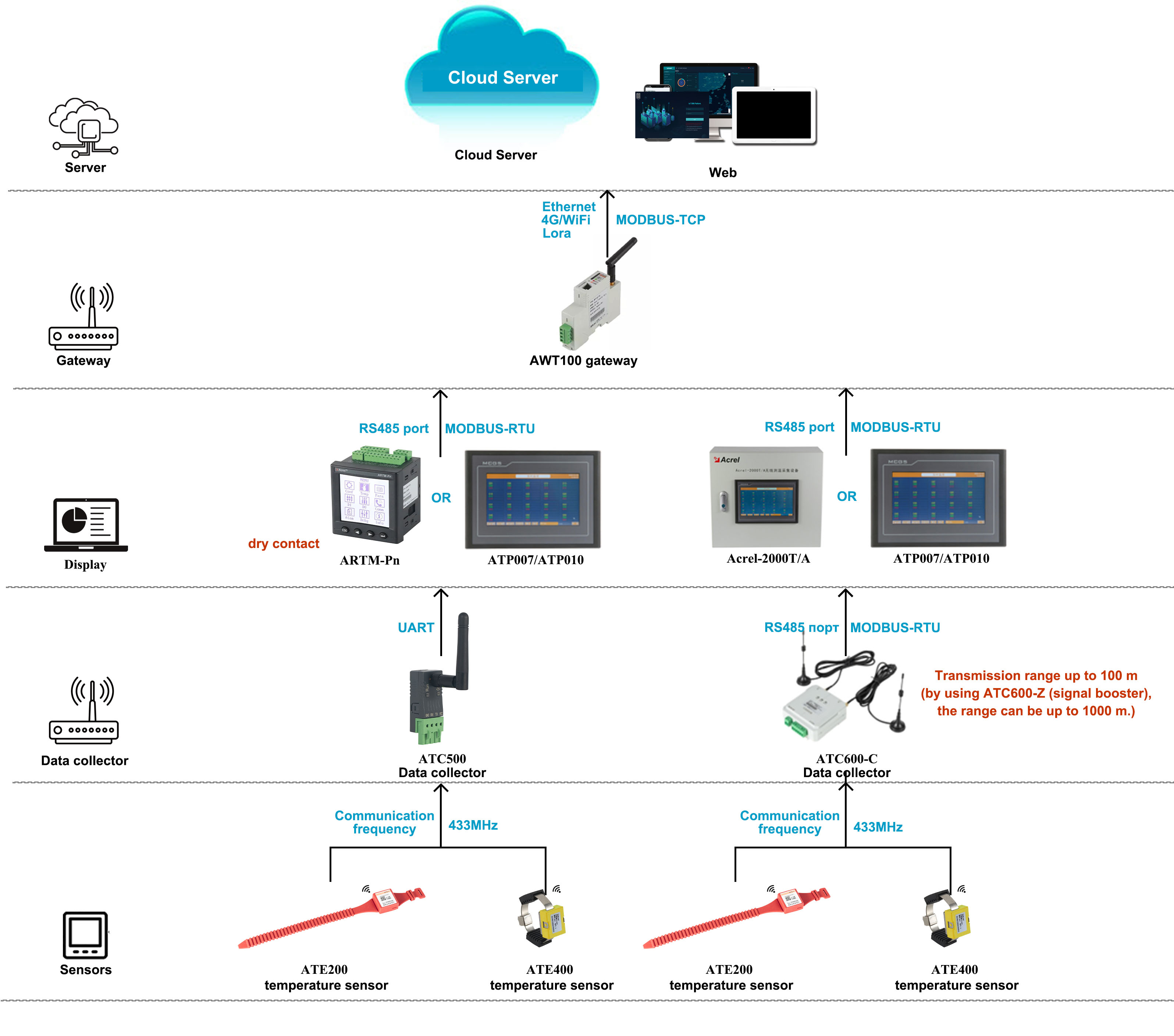

Communication Structure

■ Data transfers to the automatic control system by Modbus RTU or Modbus TCP protocols.

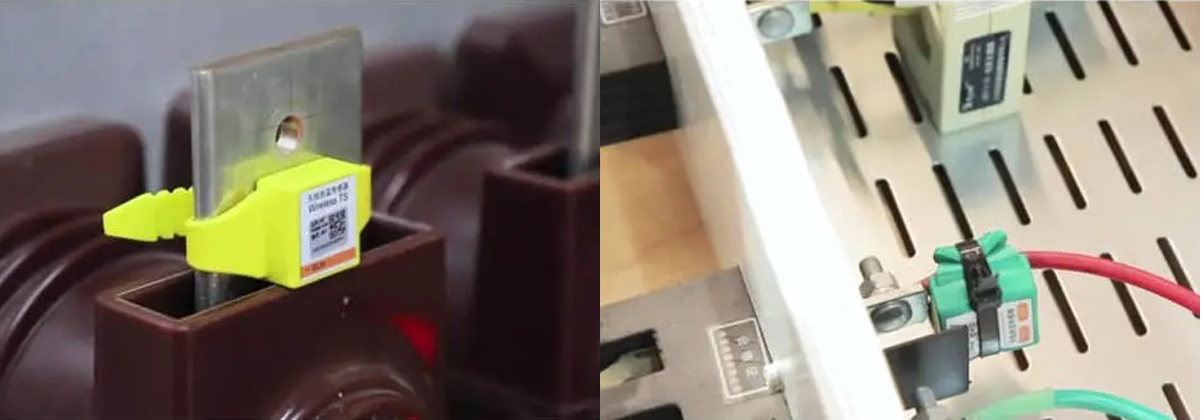

On-Site Installation
