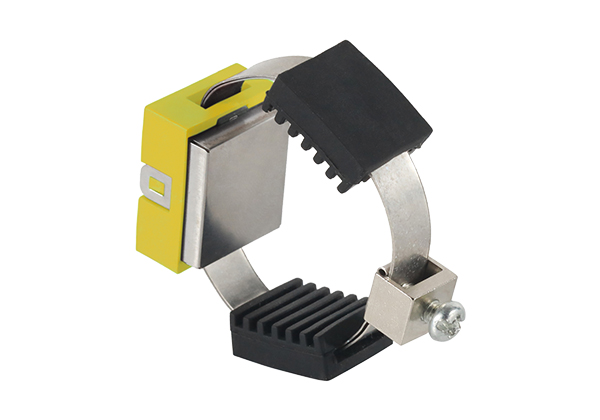

ATE400 Wireless Temperature Sensor
■ Application: Switchgear, Busbar, Electric contact, Cable joint, and etc.
■ Range of Measurement: -50℃~+125℃
■ Communication: GFSK Wireless Communication, 433 Mhz
■ Power Supply: Battery or CT Sensing Power
■ Certificate: CE
Remote temperature monitoring system for electrical contacts of switchgear, ring main unit,GCK,transformer or any other electric devices aiming for the safe use and real-time temperature monitoring while with prompt over-temperature alarm.
The temperature monitoring devices are installed in switchgears with voltage from 0.4 to 35 kV in places of contacts, busbars, transformer inputs, cables and their joints with busbars.
It is recommended for using at especially critical facilities, switchgear and switchgear with sudden temperature changes, subject to vibration, electrical installations with an ending service life or an exhausted service life.
| Working Environment | Temperature | -40℃~125℃ |
| Humidity | ≤95% | |
| Atmospheric pressure | 86kPa~106kPa | |
| Wireless temperature sensor ATE400 |
Communication frequency | 433 MHz |
| Communication distance | 100m in open area | |
| Frequency of data collector | 15s | |
| Transmitting frequency | 15s | |
| Power supply | Alloy Belted touch | |
| Installation | Alloy Belted | |
| Range of measurement | -50℃~+125℃ | |
| Precision | ±1℃ | |
| Application | Joints in high or low voltage switchgears | |
| Battery life | No less than 5 years |
