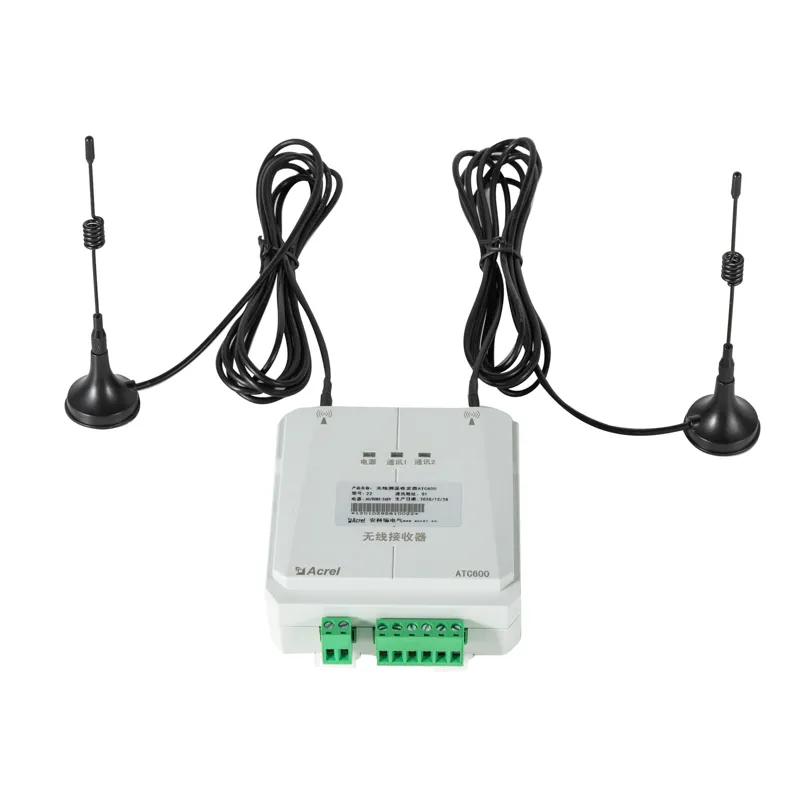

ATC600 Series (DIN Rail, RS485) Wireless Temperature Measurement Transceiver
● Models: C – Receiver; Z – Repeater; M – Receiver
● Certification: CE, RED
● Communication: RS485 with Modbus‑RTU protocol
● Mounting: 35 mm DIN rail
● Model Features:
ATC600‑C: Receives up to 240 ATE400 / ACE100 devices
ATC600‑Z: LoRa relay to ATC600‑C with forwarding distance up to 1000 m
ATC600‑M: Receives up to 240 ATE300M / ATE210 devices
● Power Supply: AC/DC 85–264 V or DC 12–48 V
Description
The ATC600 is a DIN rail‑mounted wireless temperature monitoring receiver for electrical systems. Operating at 470 MHz, it supports sensor communication over distances of up to 150 meters and enables receiver‑to‑receiver transmission up to 1 kilometer in open environments. Featuring an RS485 interface with MODBUS‑RTU protocol, the device can integrate seamlessly with SCADA and remote monitoring platforms.
Technical Datasheets
| Parameters | ATC600-C | ATC600-Z | ATC600-M |
| Function | Receiver | Repeater (Signal Booster) |
Receiver |

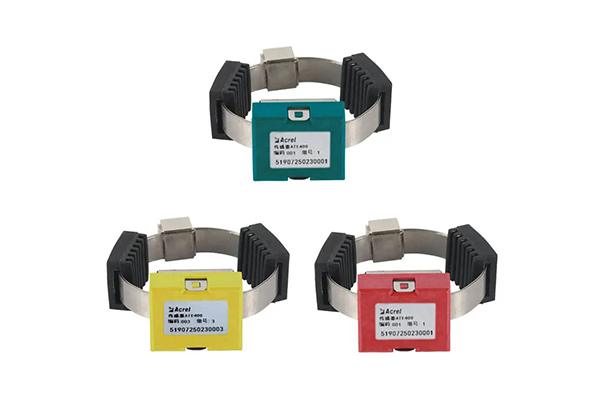

| Matching Sensors | ATE400; AHE100; ACE100; ATE300P | ATE400 | ATE300M |
| Power Source | AC/DC100~265V; DC12~48V | ||
| Power Consumption | ≤2W | ||
| Temperature Points | 240 points | --- | 1440 points |
| Resolution | 0.1℃ | --- | 0.1℃ |
| Range of Temperature | -50℃~+125℃ | --- | -40℃~+150℃ |
| Precision | ±1℃ | --- | ±1℃ |
| Wireless Frequency | 433/470Mhz | 433/470Mhz | 433Mhz~510Mhz |
| Wireless Distance | Receiving sensor 150m/470Mhz,50m/433Mhz (in open area)； Receiving repeater 1km (in open area) |
Receiving sensor 150m/470Mhz,50m/433Mhz (in open area)； Realy distance 1km (in open area) |
Receiving sensor 1km (in open area) |
| Communication | RS485 | ||
| Baud rate(bps) | 2400、4800、9600、19200 | ||
| Protocol | MODBUS-RTU | --- | MODBUS-RTU |
| Relay output | 2 passive output，capacity 5A/AC250V，5A/DC30V | ||
| Environment | Temperature:-20 ℃～+55 ℃；Humidity:≤95% | ||

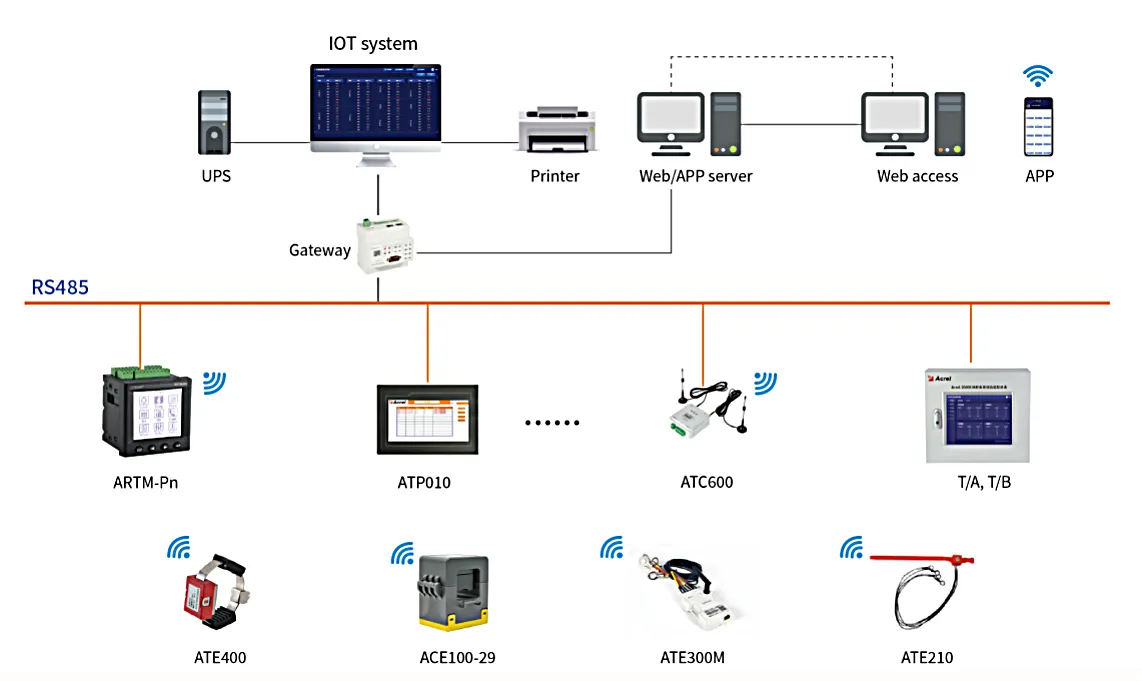

ATC600 Wireless Temperature Monitoring Solution
Dimension
Installation
