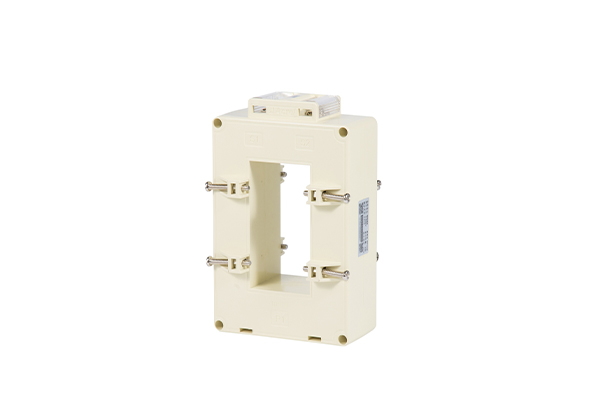

AKH-0.66/P (Protection Type) Solid Core Current Transformer
● Application: Motor Protection
● Measurement: Alternating Current (AC)
● Accuracy: 10P5, 10P10, 10P15
● Primary Current Input: 200~6300A AC
● Mounting: On Busbar
● Rated Voltage: 660V AC(0.69 kV)
● Rated Frequency: 50~60Hz
● Installtion: Fixed by Sheet Metal/Fixed by Clutch Cover
● Standard&Certificate: CE
| Parameters | AKH-0.66/P-I |
| Rated Operation Voltage | AC 0.66kV(Equivalent AC 0.69kV,GB156-2017) |
| Rated frequency | 50-60Hz |
| Ambient air temperature | -30℃-70℃ |
| Height above sea level | ≤3000m |
| Power frequency withstand voltage | 3000v/1min 50Hz |
| Used in place without direct rain and snow,without severe pollution and acute shock | |
Basic Model:
AKH-0.66/P - Series No.
Type: P-60III, P-80III, P-100III, P-130III......
Current ratio: eg: 800/5A
Selected Model:
AKH-0.66/P P-130III 1000/5A
10P10, mounting type: E
Notes: if you need more higher accuracy, please contact with us before placing orders.
Selection Table:
| Specification | Rated Current Ratio (A) | Precision Degree | Rated Load (VA) | Installation |
| P-40I | 250/0.05 | 0.5 | 5 | A、C |
| 300/0.1 | 0.5 | 5 | ||
| P-60I | 500/0.1 | 0.5 | 5 | |
| 800/0.1 | 0.5 | 5 | ||
| P-80I | 800/0.1 | 0.5 | 5 | |
| 1000/0.1 | 0.5 | 5 |
Installation:
A. Fixed by straight piece
B.
