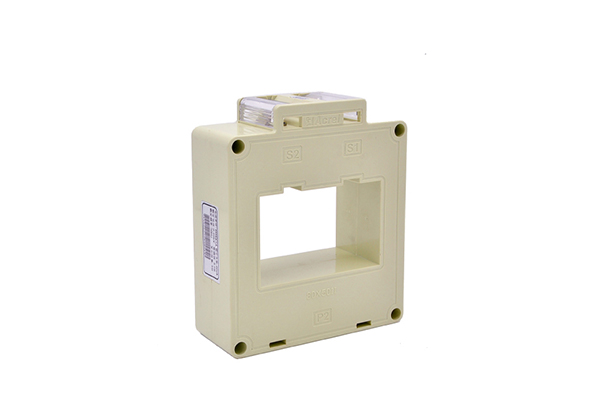

AKH-0.66/G (Measurement Type) Solid Core Current Transformer
● Measurement: Alternating Current (AC)
● Accuracy: Class 0.2, Class 0.5S, Class 0.2S
● Primary Current Input: 10~5000A AC
● Application: Above cable and busbar
● Rated Voltage: 660V AC(0.69 kV)
● Rated Frequency: 50~60Hz
● Installtion: Fixed by Sheet Metal/Fixed by Clutch Cover
● Standard&Certificate: CE
● Rated voltage AC 0.66kV (equivalent to AC 0.69kV)
● Rated frequency 50-60Hz
● Ambient temperature -30℃~70℃
● Altitude ≤ 3000m
● Withstand voltage 3000V/1min 50Hz
● It is used in places where no direct attack by rain and snow, no serious pollution and severe vibration.
Basic model:
AKH-0.66/G - Series No.
Type: G30I, G40I, G60I, G80I......
Current ratio: eg: 30/5A
Selected model:
AKH-0.66/G G30I 30/5A
0.2 class
Notes: if you need more higher accuracy, please contact with us before placing orders.
Selection table please check document at website.
