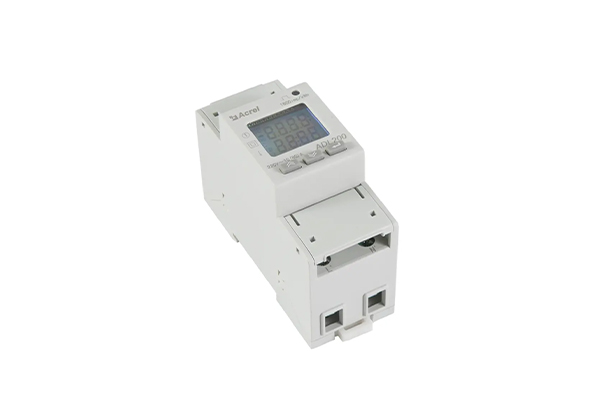

ADL200 MID Approved Single Phase AC Energy Meter
■ CE-MID Certified
■ Bi-directional Multi-tariff Energy Measurement
■ Supports Direct Connection Up to 80A
■ Class 1 High Accuracy
■ Capable of Measuring Maximum Demand
■ Historical Data Recording
Description

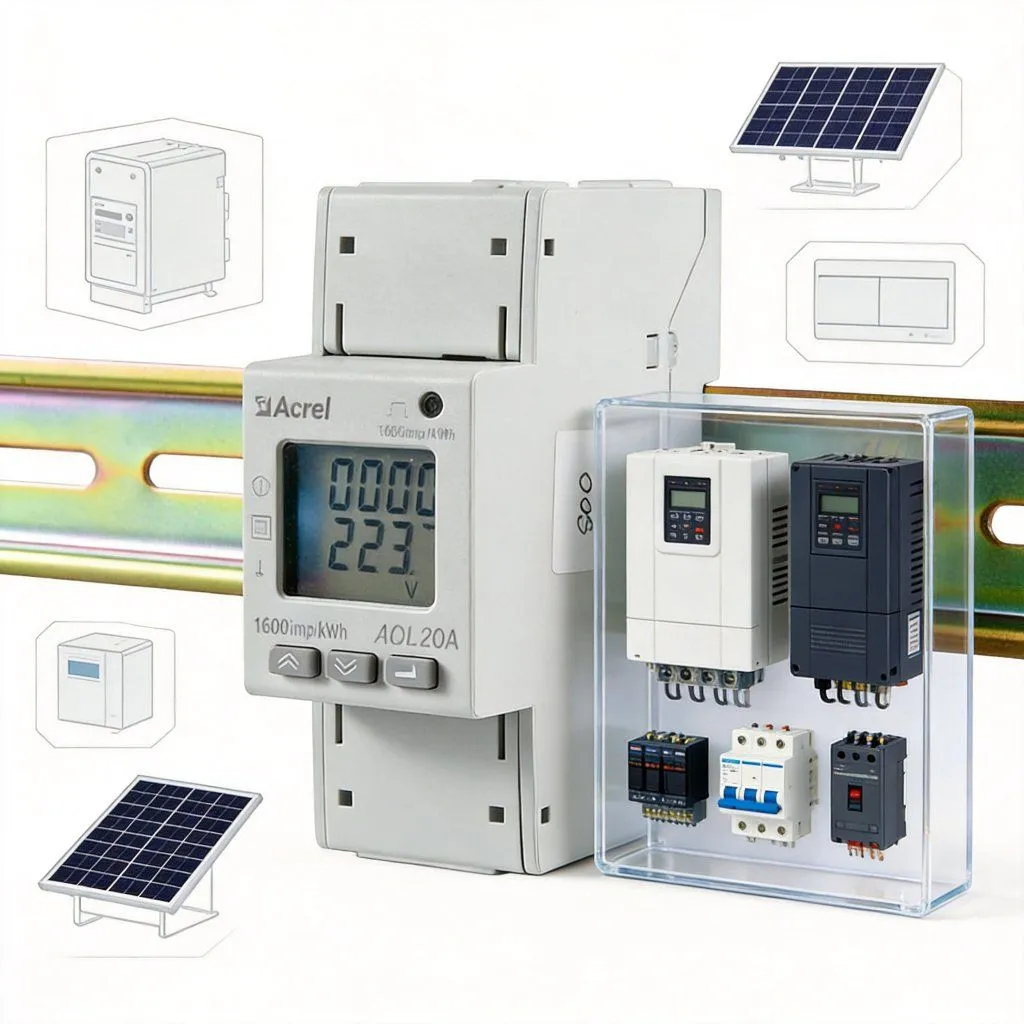

The ADL200 single-phase DIN rail energy meter is a reliable and compliant solution for precise energy measurement. It complies with EU Directive 2014/32/EU and is CE-MID certified, making it suitable for billing applications. With Class B accuracy, it supports bi-directional energy measurement and multi-tariff billing, ideal for solar PV, energy storage, and EV charging systems. The meter allows direct connection up to 80A for easy installation and offers functions such as maximum demand monitoring and historical data recording. Equipped with communication capabilities, it is widely used in industrial, commercial, and smart grid applications, delivering efficient and flexible energy management.
Technical Parameters
| Voltage | |
|
Reference voltage |
AC 220V |
|
Voltage range |
AC 75~260V |
|
Reference frequency |
50Hz |
|
Power consumption |
<10VA |
| Current | |
|
Basic current |
10A |
|
Maximum current |
80A |
|
Starting current |
4‰Ib |
|
Consumption |
<4VA |
| Measurement Performance | |
|
Accuracy of measuring |
1 class |
|
Range of measuring |
000000.00~42949672.95kWh |
| Communication | |
|
Interface |
RS485(A+、B-) |
|
Connection mode |
Shielded twisted pair conductors |
|
Protocol |
MODBUS-RTU |
Application
Energy Efficiency Management System
Installation & Wiring
Customer Story
SunTower Project
The Sun Tower project in Bangkok deployed a cloud-based solution with meters, gateways, and platform to enable remote electricity monitoring, real-time fault alerts, automated meter reading, and energy analysis across office and commercial floors.
EV Charger Project

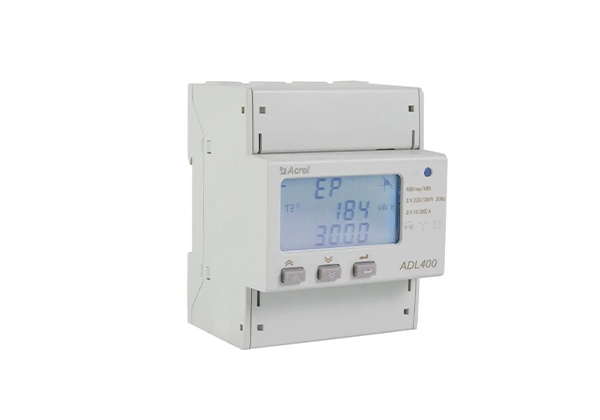

The project for Chargers in Spain deployed the Acrel DJSF1352-RN/D DC meters, ADL200 single-phase meters, and ADL400 three-phase meters, providing integrated energy monitoring and management solutions with a total project value of approximately $250,000.
