Local&Online Topping Up

● Topping up by RFID Card (Local)

● Topping up by Mobile APP (Online)

● Topping up by Prepaid System (Online)

● Low Balance Credit Alarm by sending SMS

Auto&Remote Switch Control

● Meter Supports Prepaid Mode & Postpaid Mode

● Auto Tripping when Balance Credit is below Zero (Prepaid Mode)

● Before Auto Tripping, Power Users can receive Low Balance Alarm by SMS

● Remote Swtich Control by using Prepaid System (Prepaid&Postpaid Mode)

● Prepaid&Postpaid Mode of Meters can be set using Prepaid System

Multi-rate&Multi-tariff

● 4 Tariff Rates (Spike, Peak, Flat, Valley kWh Unit Price)

● 14 Time Intervals by Day

● Set Unit Price of Electricity Consumption for different Time Period in One Day

  ■ Prepaid function: Prepaid control, time control, load control, distant control

  ■ Energy Measurement:

        kWh(2 directions, "+" and "-"), kvarh(2 directions, "+" and "-")

        U, I, P, Q, S, PF, F

  ■ LCD Display, Back linght

  ■ HMI, programable buttons, back linght

        Code, Protocol, Address, Baud rate, Parity, CT/PT Ratio

  ■ Active energy pulse output

  ■ Alarms: trip alarm(LED indicator)

  ■ Multi-rate/Flexible Tariff:

        4 time zones, 4 tariff rate (Spike, Peak, Flat, Valley)

        2 time periods list, 14 time periods in day

  ■ Data Function: Frozen Data(last 48 months or last 90 days),Max Demand

  ■ Communication: RS485 interface

■ Connection types: single-phase

■ Input voltage: AC 220

   Resistance:> 2 MΩ

   Power consumption: < 10 VA

■ Input current: 10(60)A AC

   Consumption: < 4 VA

■ Frequency: 45~65Hz

■ Accuracy:

        kWh: 1.0   class

        kvarh: 2.0  class

■ Range of measuring: 000000.00~99999999kWh

■ Active energy pulse:

           Pulse width: 80±20ms

           Pulse constant: 1600imp/kWh

■ Digital output: quantity: 1

■ Communication: Interface RS485, Protocol MODBUS-RTU, 1200bps~19200bps

■ Work environment:

           Work temperature: -25℃~55℃

           Relative humidity: ≤95%(No condensation)

           Altitude: <2000m

Basic model:

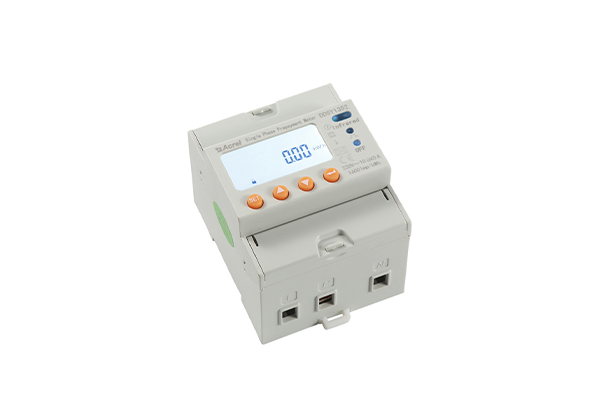

        Provided without CT: ADL100-EY

Optional function:(Place as your technical requirements)

        Built-in Holding Relay for Switch On-off Control/opping up by Prepaid System (Online): NK

        Built-in Holding Relay for Switch On-off Control/Topping up by RFID Card (Local): Z

        Topping up by RFID Card (Local): RF

        Communication: First RS485 interface: C

                                   Second RS485 interface: 2C

        Tariff: F

Selected model:

        ADL100-EY-RF C F
