ADL10-E Power Meter
■ Measurement: single-phase kWh, kvarh, U, I, P, Q, S, PF, F
■ Input current: AC 10(60)A
■ LCD Display
■ 1P dimension
■ Communication: RS485 (MODBUS-RTU protocol)
■ Communication: RS485 interface
■ Measurement:
kWh(2 directions), kvarh(2 directions)
U, I, P, Q, S, PF, F
■ LCD Display, Back linght
■ 1P Dimension

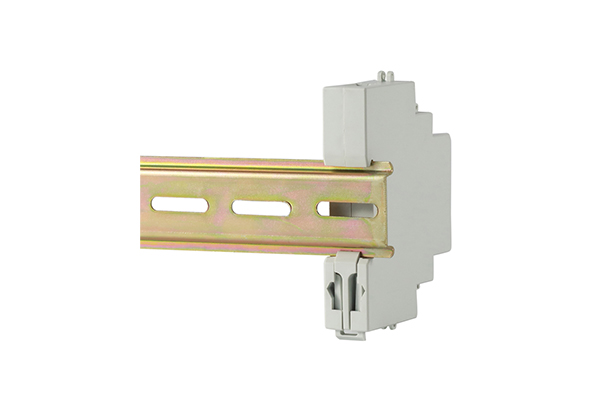

■ Din Rail Mounted Meter
Customer Story
SunTower Project
The Sun Tower project in Bangkok deployed a cloud-based solution with meters, gateways, and platform to enable remote electricity monitoring, real-time fault alerts, automated meter reading, and energy analysis across office and commercial floors.
EV Charger Project
The project for Chargers in Spain deployed the Acrel DJSF1352-RN/D DC meters, ADL200 single-phase meters, and ADL400 three-phase meters, providing integrated energy monitoring and management solutions with a total project value of approximately $250,000.
■ Input voltage: AC 220V
Frequency: 50Hz
Power consumption: < 10 VA
■ Input current: 10(60(Ib))A
Starting current: 4‰Ib
Consumption: < 4 VA
■ Accuracy: 1 class
■ Range of measuring: 000000.00~99 999 999kWh
■ Communication: Interface RS485, Protocol MODBUS-RTU
■ Work environment:
Work temperature: -25℃~55℃
Relative humidity: ≤ 95%(No condensation)
Altitude: < 2000m
■ Basic model:
ADL10-E/C
■ Optional function:(Place as your technical requirements)
N/A
■ Selected model:
ADL10-E/C
