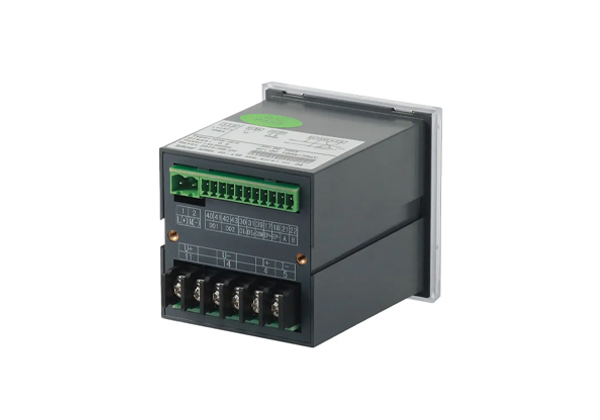

PZ Series DC Power Meter
■ Measurement: DC kWh, U, I, P
■ DC Current/ Voltage Input
■ Programmable Keys
■ LCD/LED Display
■ Communication: RS485 (MODBUS-RTU Protocol)
■ 12V Power Supply Output
■ Digital Input/Digital Output
PZ series intelligent DC energy meter is designed for applications such as DC panels, solar power, telecommunications base stations, and charging ports. This series of instruments can measure voltage, current, power, forward and reverse power in a DC system. It can be used for local display, and connected with industrial control equipment, computers, form a measurement and control system.
It has a variety of external excuse functions for the user to choose from RS485 communication interface, Modbus-RTU protocol, relay alarm output, digital input/output. According to different requirements, through the instrument panel keys, you can set the ratio, communication parameters.
The product meets the relevant technical requirements of the standard DC power meter specification, Non-vehicle charging electric energy metering for electric vehicles, single-phase energy meter specification.
| nput | DC voltage | Input range | Direct access:0~100V, 0~500V, 0~1000V |
| Input resistance | ≥6kΩ/V | ||
| DC current | Input range | Indirect access:0-2500A | |
| Shunt | 75mV | ||
| Hall Current Sensor | 0~20mA, 0~5V | ||
| Power consumption | ≤1mW | ||
| Overload | 1.2 times (normal), 2 times/second (continued) | ||
| Accuracy class | Class 0.5 | ||
| Pulse constant | 750V,300A; 1000V,300A; 1000V,200A; Default pulse constant: 100imp/kWh | ||
| Function | Measuring | Voltage,Current,Power | |
| Calculate | Current total electricity, Current positive energy, Current reverse power | ||
| DI,DO | PZ72: 2DO+2DI ; PZ96:2DO+4DI | ||
| Display | LCD(the backlight delay time can be adjusted) or LED | ||
| Communication | RS485, Modbus-RTU / DL / T645-07, Band :1200/2400/4800/9600, infrared:1200 | ||
| Power Supply | Voltage range | 85~265VAC / DC,50/60Hz; 20~60VDC; 100~350VDC | |
| Power consumption | ≤ 2W | ||
| Insulation resistance | ≥ 100M Ω | ||
| Power frequency withstand voltage | 3kV/1min (RMS) | ||
| Environment | Temperature | Normal operating temperature: -25 °C ~ +60 °C; Storage temperature: -20ºC~+70ºC |
|
| Humidity | ≤93%RH, no condensation, no corrosive gases | ||
| Altitude | ≤2500m | ||
☆ Brand
☆ Model
☆ Panel
☆ Set Button
☆ Left Button
☆ Right Button
☆ Enter button
Cut-out Size: 67*67mm
Depth: 98mm
■ Input Voltage: DC 0-100V, 0-500V, 0-1000V
Overload: 1.2 times(working normal), 2 times 1s.
■ Input Current: 0-75mV(shunt)
0-20mA, 4-20mA, 0-5V, 0-10V(hall sensors)
Overload: 1.2 times(working normal), 2 times 1s.
Power consumption: < 1mW
■ Accuracy: 0.5 class
■ Active Energy Pulse
Pulse Constant: 750V, 300A, 100imp/kWh
1000V, 300A, 100imp/kWh
1000V, 200A, 100imp/kWh
■ Multi-rate/Flexible Tariff:
4 time zones, 4 tariff rate (Spike, Peak, Flat, Valley)
2 time periods list, 12 time periods in day
■ Communication: Interface RS485, Protocol MODBUS-RTU, 1200bps~19200bps
■ Range of Measuring: 000000.00~99999999kWh
■ Digital Input: Quantity: Max. 4
Digital Output: Quantity: 2, 2 A/30 V DC or 2A / 250 V AC
■ Power Supply: AC/DC 85-265V
DC 20～60V
Consumption: 3 W
■ Circle Life: >50000h
■ Work Environment:
Work Temperature: -25℃~55℃
Relative Humidity: ≤95%(No condensation)
Altitude: <2000m
Basic Model:(Please be noted, CTs doesn't provide with meter.)
PZ - serise code
Outline Dimension:
72: 72 x 72 mm
96: 96 x 96 mm
Display: L - LCD; if with out leter "L", it will be LED.
Monitor of DC Energy: DE
Selected Basic Model:
AMC96L-DE
Optional Function:(Place as your technical requirements)
C: Communication, RS485 Interface(Modbus-RTU)
V: 12V power supply output
K: Digital Input/Output: Q-ty of DI: 2, Q-ty of DO: 2 (Please highlight 4DI + 2DO(Only for PZ96), when placing an order.)
F: Tariff
ZD: DC 20-60V power supply
Finial Selected Model:
AMC96L-DE C K V
