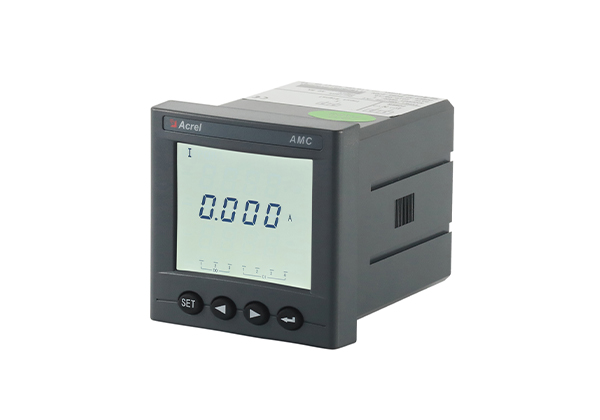

AMC Series AC Single/Three-Phase/DC Voltmeter/Ammeter

■ Measurement: DC/AC single/three-phase U, I, F

■ Input current: AC 1A, 5A (via CTs)

DC 75mV, 10V, 0-20mA, 4-20mA, 5A

■ Programmable keys

■ LCD/LED Display

■ Digital input/output

■ Analog quantity output

■ Alarm output

■ Communication: RS485 (MODBUS-RTU protocol)

■ Certificates: IEC; CE;

Email: yara@acrel-electric.com

Tel: 8618702108363

Whatsapp: 8618702108363

AMC Series AC Single/Three-Phase/DC Voltmeter/Ammeter

Manual.pdf

CE certificate.pdf

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

OVERVIEW

Three-phase AC Multi-function Panel Energy Meter AMC96L-E4

AMC series programmable intelligent meters, adopting AC sampling technology, can directly or indirectly measure the electric voltage and current of a single-phase or three-phase grid. It can be used for local display, and connecting industrial control devices to form measuring control systems.

This series of meters have an RS-485 port, adopting the Modbus-RTU protocol. Analog output, alarm output, and switching input/ output can be selected. Based on different requests, by pressing the keys, parameters of ratio, alarm, communication, etc. can be modified.

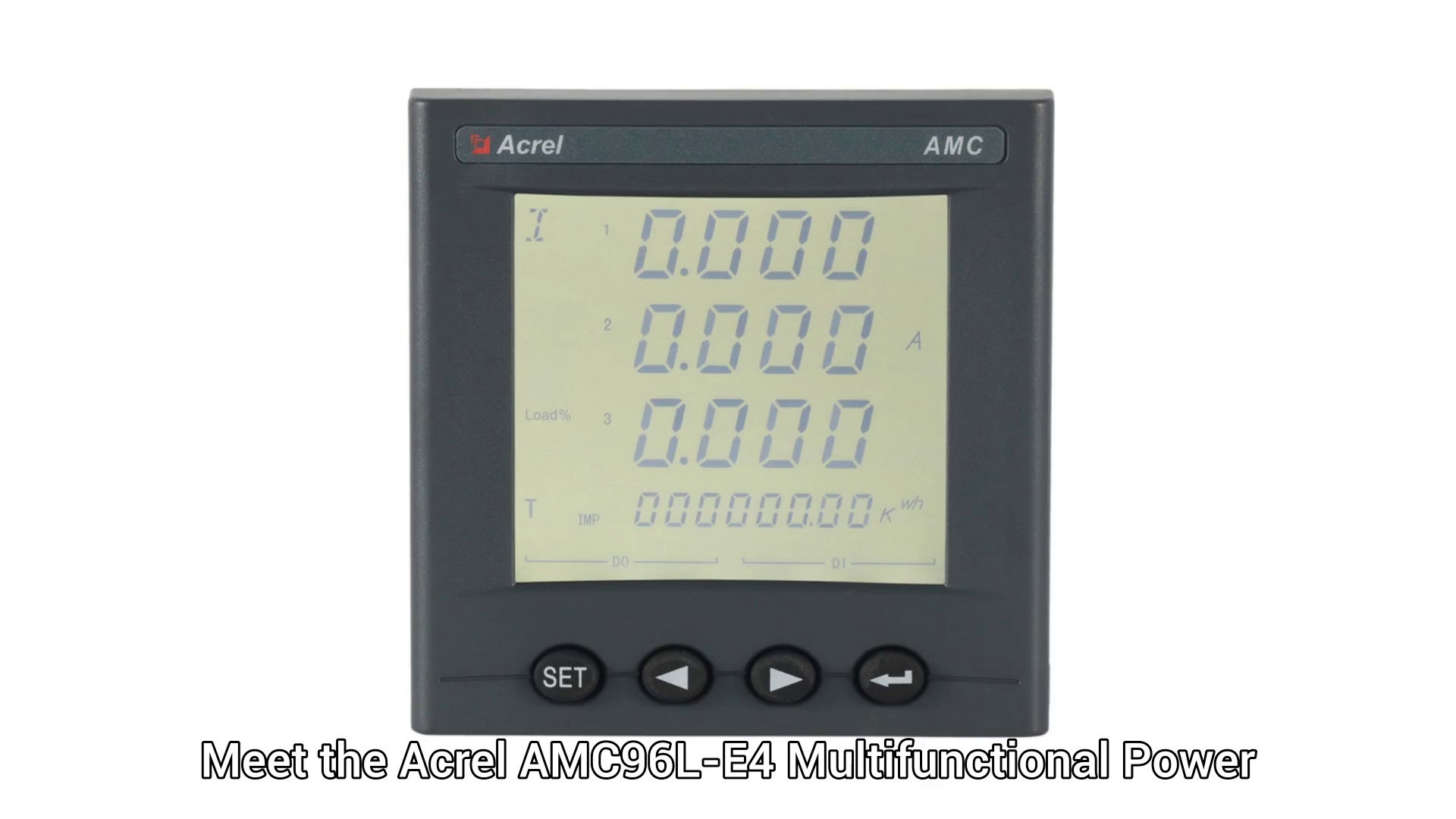

Smart Acrel Amc96L-E4/Kc RS485 Meter for Electrical Panelboards

Main Parameters

Parameter	Description&Value
Input	Rated Voltage	AC Voltage Input: 400V or 660V AC L-L (via direct connetion); 100V AC L-L (via -/100V AC PTs)
	Rated Current	AC Current Input: 5A AC or 1A AC (via -/5A AC or -/1A AC CTs)
	Overload	Current&Voltage input overload:1.2 times rated value(continuous); 10 times rated value /1 second
	Frequency	45~65Hz
	Power Consumption	Power consumption of each current&voltage input circuit is less than 0.5VA
Measuring Accuracy	Voltage	0.2%
	Current	0.2%
	Active Power	0.5%
	Reactive Power	1.0%
	kWh	0.5%
	kVarh	1.0%
	Frequency	±0.05Hz
	Harmonic	±1%
Power Supply	Voltage Range	85-265V AC/DC; 24V or 48V DC (±20%)
Power Supply	Power Consumption	≤10VA
Insulation resistance		≥ 100MΩ
Power frequency withstand voltage		Between Power supply//Switching Output// Current Input//voltage Input and Transmitting// Communication //Pulse Output//switching input AC 2 kV 1min; Between Power supply,switching output,Current Input,voltage Input AC 2 kV 1min; Between Transmitting,Communication,Pulse Output,switching input AC 1kV 1 min;
