GGF Medical Isolated Power Supply Cabinet for IT System Operating Room ICU CCU
■ IEC 60364-7-710 for IT system
■ Isolating transformer
■ Insulation monitoring device
■ Current transformer
■ Insulation fault locator (optional)
■ Dual power supply switching device(optional)
■ UPS (optional)
■ Circuit breaks
■ Air circulating fans
Medical Isolation Power Supply System
Application
According to IEC 60364-7-710, an unearthed power supply (medical IT system) is required in operating theatres, intensive care units, emergency rooms and other particularly sensitive areas of a hospital where patients are treated. Acrel offers all the necessary individual components, isolated power panels and centralized monitoring system for an unearthed power supply in medical locations.
 |
 |
 |
 |
 |
Prologue
Due to growing demands of electronic medical equipmentfrom hospitals, the request of protection for patients from the threat of residual current became the most crucial parts of hospital isolated power supply system.
Structure
|
Model(Cabinet) |
GGF-I6X (Without Locating) |
GGF-I8X (Without Locating) |
GGF-I6XL (With Locating) |
GGF-I8XL (With Locating) |
|
Isolation Transformer |
AITR6300S （6.3kVA） |
AITR8000S (8kVA) |
AITR6300S (6.3kVA) |
AITR8000S （8kVA） |
|
Insulation monitors |
AIM-M100（or AIM-M10） |
AIM-M200 |
||
|
DC power supply |
ACLP10-24 |
HDR-60-24 |
||
|
Test signal generator |
—— |
ASG150 |
||
|
Insulation fault locator |
—— |
AIL150-4 |
||
|
Output circuit |
IT Systems: 4, 8, etc. (can be customized according to the actual needs) |
|||
|
Current Transformer |
AKH-0.66P26 |
|||
|
Breaker |
iC60LMA 16A 2P、iC60LMA 40A 2P |
|||
|
Alarm and display instrument |
AID 150 (single set or multiple sets of centralized monitoring) |
|||
Main Functions
| Monitoring Software |

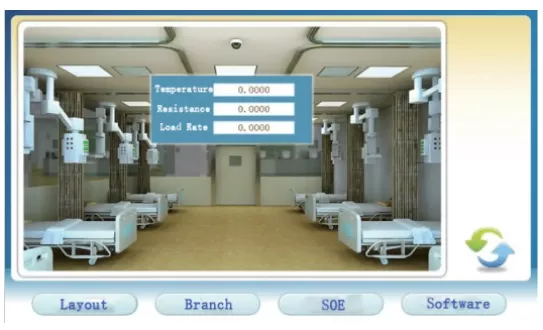

| Real-time Data Acquisition | Fault Alarm |
 |
 |

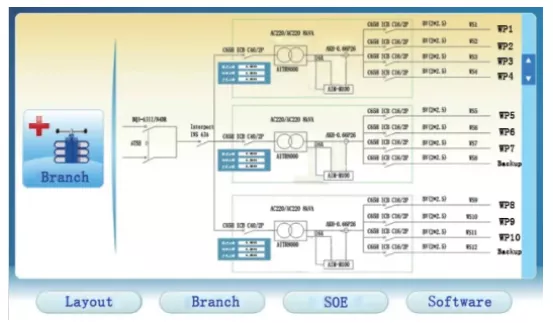

| Primary Connection Diagram | Primary Connection Diagram |
 |
 |
Solution Samples
 |

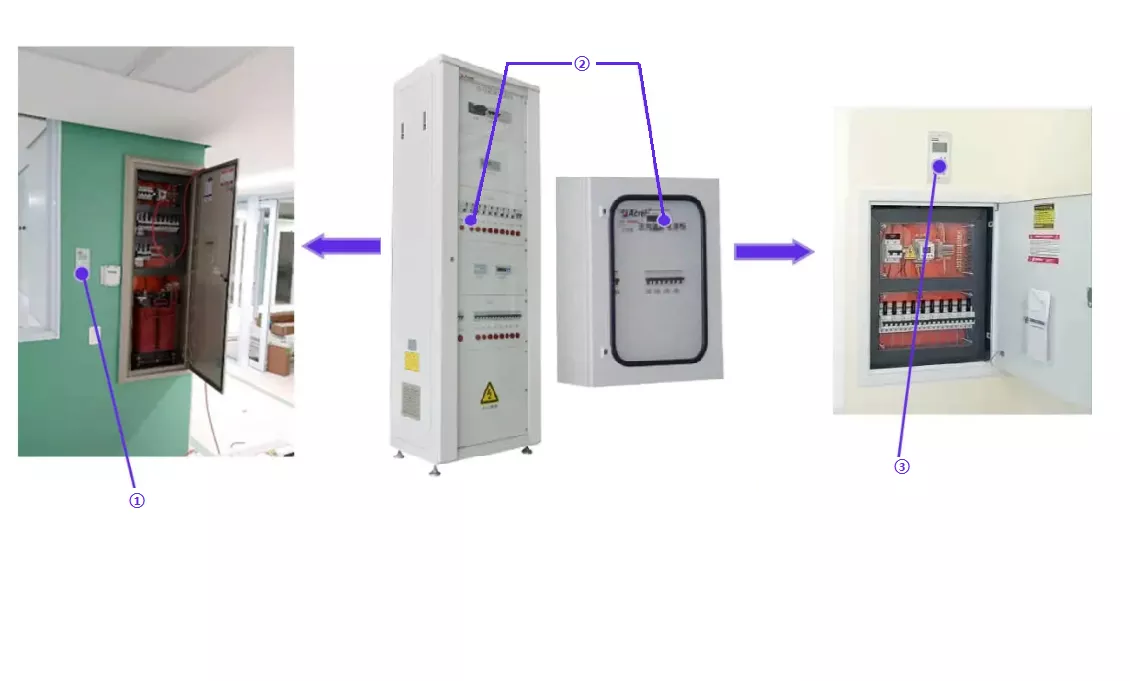

①AID200 Alarm&Display Divece ● Remote Monitroing ● LED Indicator ● Support Monitoring at Multiple Locations ● CAN bus Communication ②GGF Isolation Power Cabinet ●Group 2 Medical Scenario ●Q235ACold Rolled Steel Plate ●Louver Type Heat Dissipation Fan ●Multiple Sizes and Installation Types ③AID150 Alarm&Display Divece ●Remote Monitroing ●LED Indicator ●Display Data of Multiple Insulation Monitor ●RS485Communication |
|

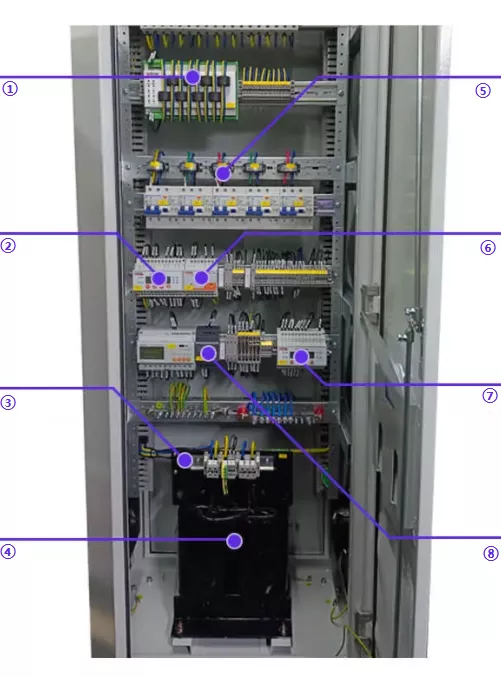

①AIL150 Isolation Fault Locator ●Measuring Channel: upto 8 ●Communication: CAN bus ●LocatingCurrent(peak):<1mA ●Locating Voltage(peak):<25V ②AIM-M200 Isolation Monitor ●lsolation Resistance Monitoring ●Fault Alarm Relay Output ●1CANbus+1RS485Communication ●Transformer Temperature&Load Monitoring ③AKH-0.66P26 Protective Current Transformer ●Input Current:0.5mA~50A ●Output Current:0025~25mA ●Accuracy: 0.5% ●MonitoringLoadofInsulation Transformer ④AITR Isolation Transformer ● Multiple Insulation Treatment ●LeakageCurrent:<0.2mA ●InrushCurrent: ●Noise Level:<40dB(A) |
|
⑤AKH-0.66/L-20 Residual Current Transformer ●Paired with AIM-R100 ●Accuracy: 0.2 ●Secondary Current:50mA ●Ratio:2000:1 ⑥ASG150 Test Signal Generator ●Rated Voltage:AC242V ●Communication:CAN bus ●Locating Current(peak):<1mA ●LocatingVoltage(peak):<25V ⑦AIM-R100 Residual Current Monitor ●MeasuringRange:1mA~5A ●Range of AlarmValue:6mA~1A ●Fault Record Function ●Alarm Relay Output ⑧HDR60-24 DC Auxiliary Power Supply ●Input:AC 100-240V1.8A ●Output:DC24V2.5A ●Power Supplyfor AIM-M200,AIL150ASG150 ●Total MaximumPowerConsumption: 60VA |
 |

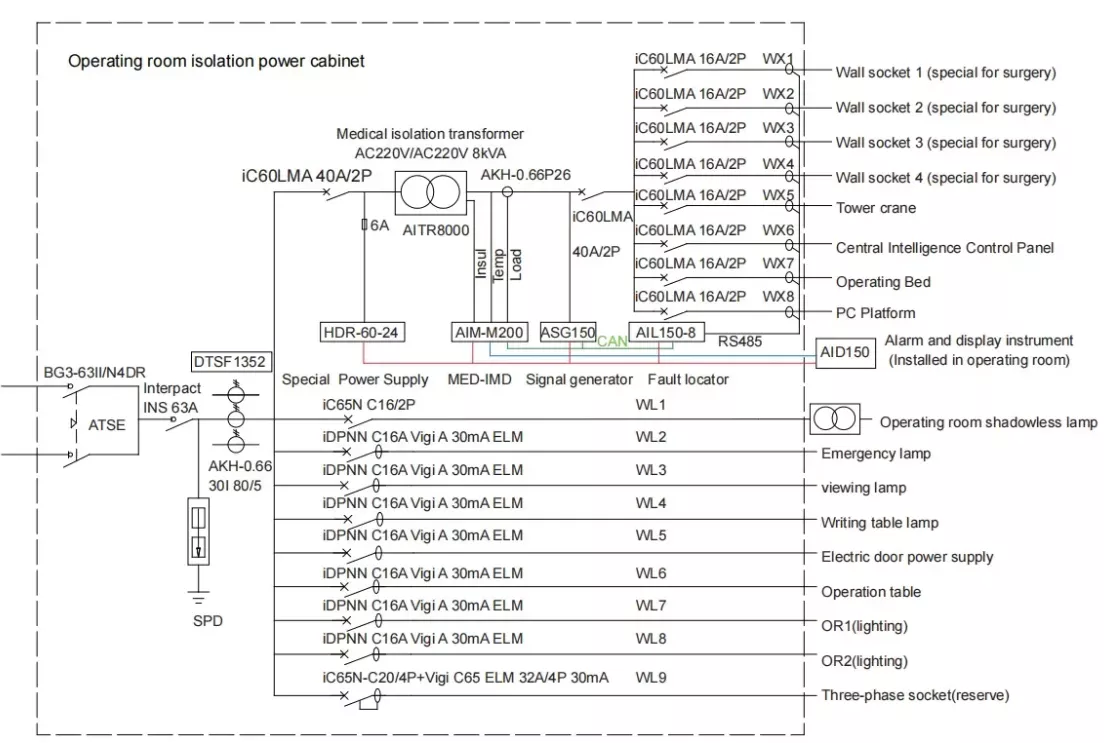

| Operating Room Solution(with isolation fault location function) |
Product Selection
 |
1) AITR Series Medical isolation transformer
● isolating transformers for medical IT systems ● Double insulation treatment, Electrostatic shielding layer ● PT100 temperature sensor ● Rated power: 3.15…10KVA ● CE |
 |
2) AIM-M200 Medical Intelligent Insulation Monitor
● Insulation monitoring for medical IT systems ● Load and temperature monitoring of isolation transformer ● Device disconnection monitoring ● LED indicators: On, Insulation, Overload, Overtemp ● Alarm relay output ● Test button ● Insulation fault location ● RS485 (MODBUS-RTU) + CAN |
 |
3) ASG150 Signal Generator
● Generating Fault Location Signal ● Detection of L1 and L2 disconnection ● LED indicators: On, Comm, Test ● CAN bus ● Auxiliary power supply: DC24V |
 |
4) AIL150-4/-8 Insulation Fault Locator
● Insulation fault location in AC IT systems ● AIL150-4: 4 measuring channels ● AIL150-8: 8 measuring channels ● LED indicators: On, Comm ● CAN bus ● Auxiliary power supply: DC24V |
