AWT100-4GHW Smart Gateway (4G Communication)
● Uplink: 4G
● Uplink Protocol: MODBUS-TCP, MQTT
● Downlink: RS485 Interface
● Downlink Protocol: MODBUS-RTU
● Support: Up to 15 Acrel Devices with RS485 (MODBUS-RTU)
● Power Supply: DC 24V (default);
AC/DC 85~265V (via AWT100-POW Module)
Selected model:
Model 1:
AWT100 - 4G
Power supply: DC 24V
Model 2:

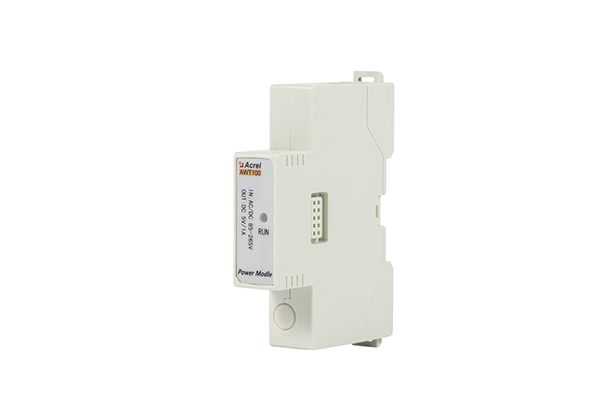

AWT100 - 4G and AWT100-POW
Power supply: AC/DC 85~265V

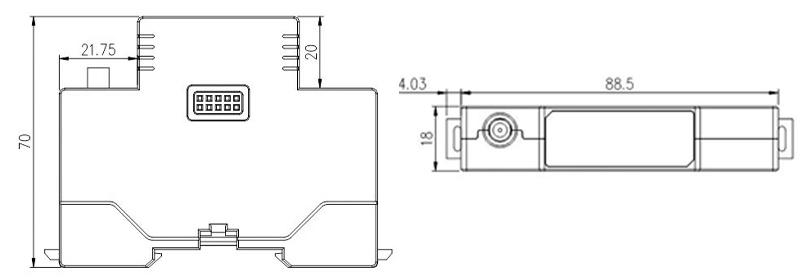

Dimension
DIN rail 35mm
Terminals

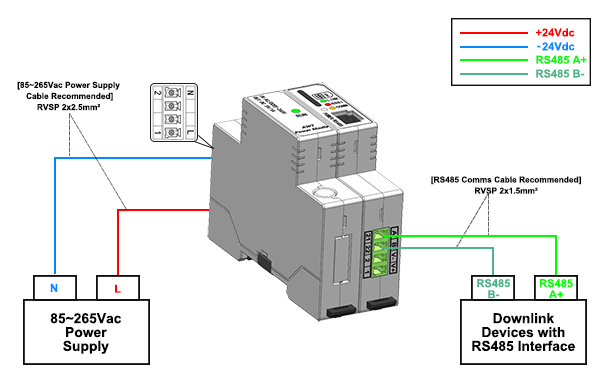

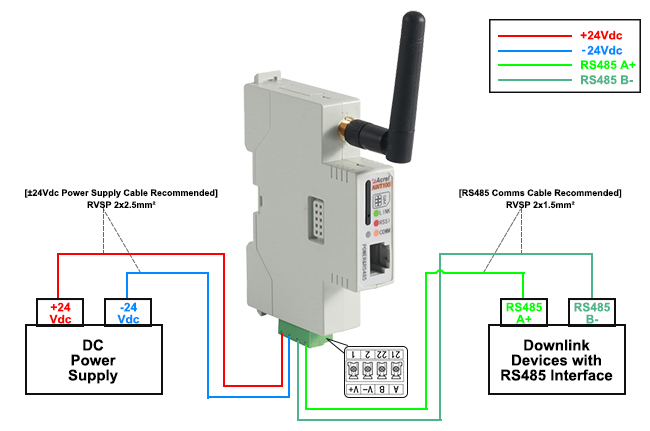

Wiring Diagram
Communication Structure

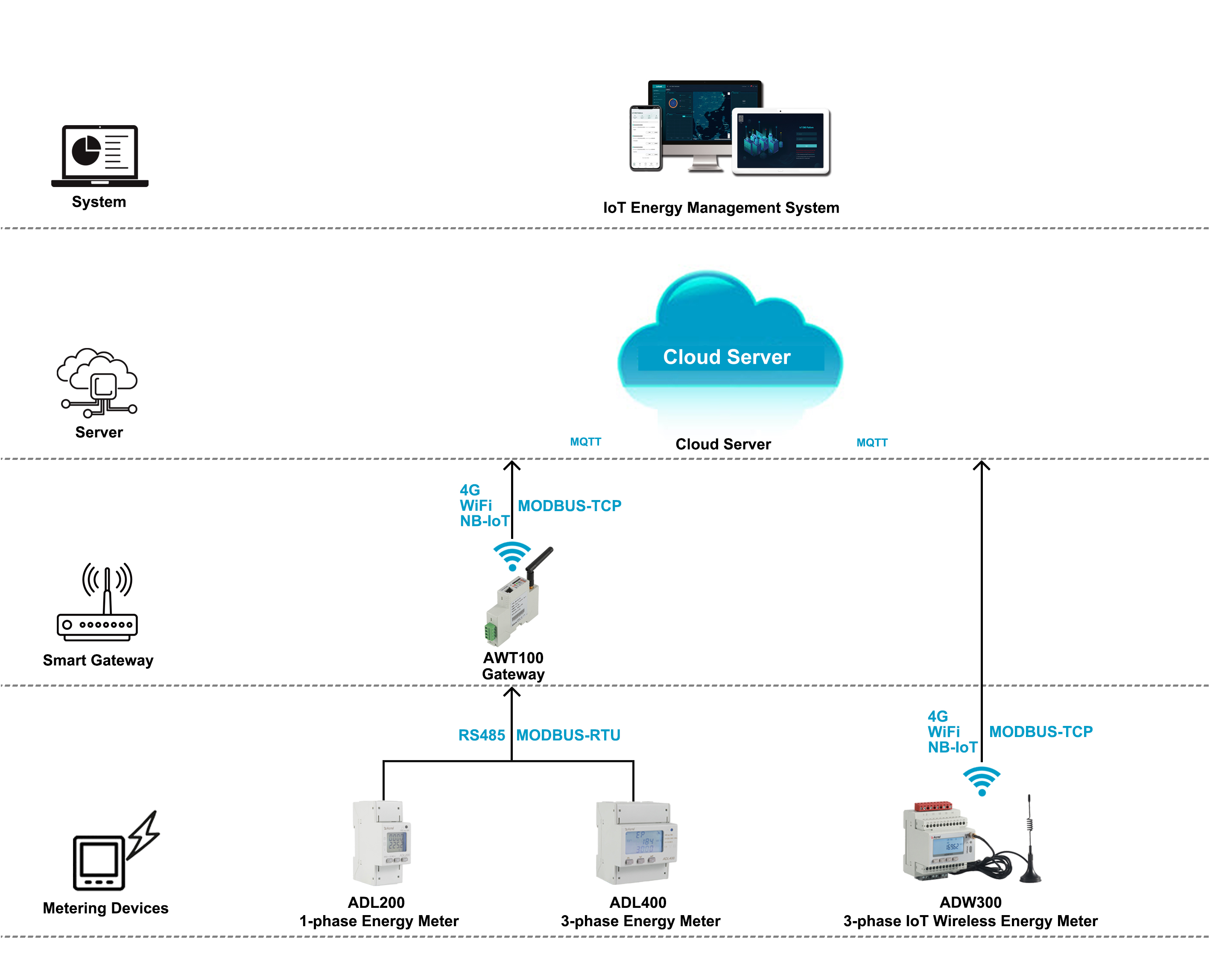

Via 4G

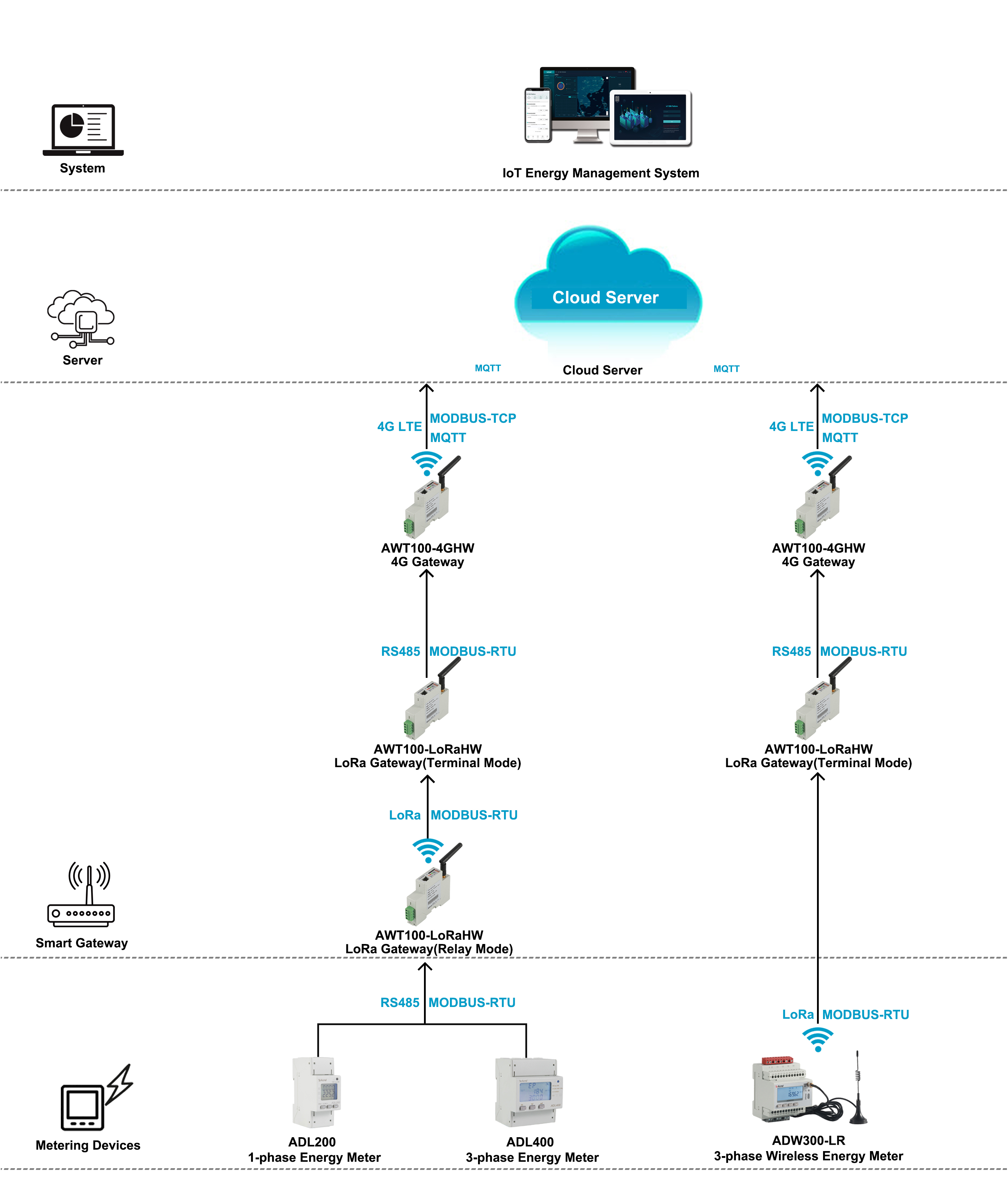

Via Lora-4G
