Abstract: Driven by the European Union’s climate-neutrality targets, energy-security priorities, and building decarbonization policies, installed photovoltaic (PV) capacity continues to expand across both utility-scale ground-mounted plants and distributed rooftop systems. Conventional manual inspections and plant-level energy-yield reporting are no longer sufficient for data-driven operations and maintenance (O&M) or grid-compliant interconnection. This article presents Acrel’s integrated PV monitoring and zero-export (anti-reflux) solution, covering the entire energy flow from DC generation and power distribution to AC grid connection. The solution enables European PV projects to improve operational safety, monitoring intelligence, grid compliance, and lifecycle economics.



1. Overview of the European PV Industry



Supported by EU climate-neutrality targets, energy-independence strategies, and increasingly stringent building-energy requirements, Europe’s PV market continues to grow rapidly. Deployment spans residential systems, commercial and industrial (C&I) rooftops, and utility-scale ground-mounted power plants.



However, many new and existing PV installations still rely on incomplete monitoring architectures. Critical points—including PV strings, combiner-box inputs, inverter outputs, and the point of common coupling (PCC)—often lack granular data acquisition, while operators record only total energy yield. Limited data visibility and outdated O&M practices can leave underperforming strings, equipment faults, and unintended power export undetected, reducing energy yield and increasing grid-compliance risks. European projects therefore require an intelligent, end-to-end PV monitoring solution that provides traceable data and reliable zero-export control.



2. Common Challenges Facing European PV Projects



In the context of European grid requirements and local O&M practices, PV plants typically face five key challenges:



2.1 Limited branch-level visibility and hidden energy losses

Plant-level energy metering alone does not reveal the performance of individual strings or combiner-box branches. Module degradation, shading, wiring issues, and branch faults may therefore remain undetected for extended periods, resulting in avoidable generation losses.



2.2 Unintended power export and grid-compliance risks

Distribution system operators may limit or prohibit reverse power flow at the PCC. During rapid irradiance changes or periods of low on-site demand, excess PV generation can be exported to the grid, potentially causing voltage deviations, contractual penalties, or disconnection.



2.3 Slow fault localization and high O&M costs

PV assets are often geographically dispersed, making manual inspections time-consuming and expensive. Without real-time alarms and device-level diagnostics, fault localization takes longer and production losses accumulate.



2.4 Data silos that hinder integrated energy management

Inverters, energy meters, and combiner-box monitoring devices may use different communication protocols. Fragmented generation, consumption, and grid-exchange data make centralized reporting, performance benchmarking, energy analysis, and revenue calculation difficult.



2.5 DC-side safety risks

Outdoor combiner boxes, connectors, and DC cables are exposed to aging, overheating, and loose or high-resistance connections over prolonged operation. Without continuous electrical and temperature monitoring, these conditions can develop into short-circuit or fire hazards.



3. Acrel’s Integrated End-to-End PV Monitoring Solution





To address these challenges, Acrel provides an integrated solution combining PV generation monitoring, zero-export control, and intelligent O&M. It covers the complete chain—from DC generation and power distribution to AC grid connection—and supports utility-scale ground-mounted plants as well as residential and C&I rooftop systems.



The system uses a three-layer architecture: field sensing, data transmission, and cloud-based monitoring. PV-specific smart meters and combiner-box monitoring units collect real-time field data and transmit it through wired or wireless networks. The platform supports 24/7 unattended monitoring, proactive fault alarms, accurate energy accounting, and data-driven performance analysis.

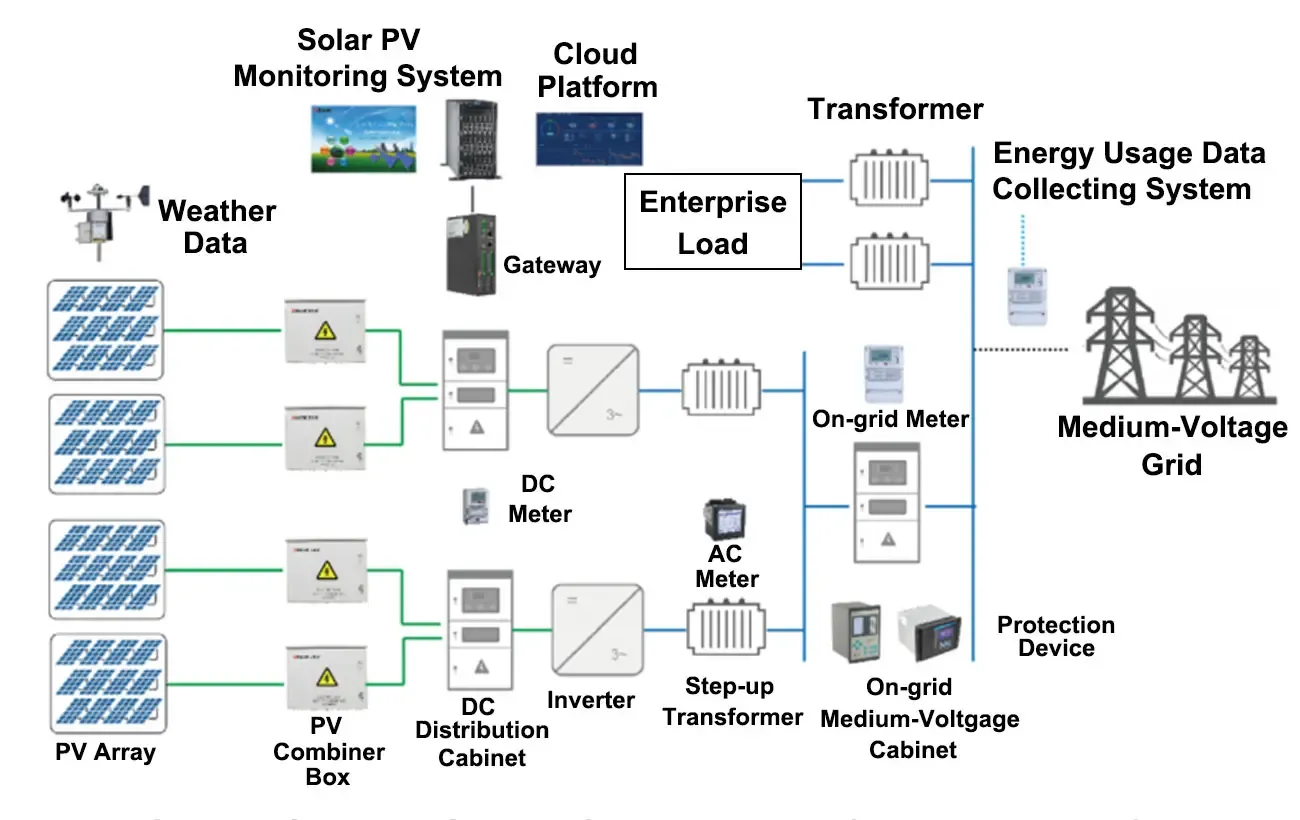

3.1 Architecture for utility-scale ground-mounted PV plants





A utility-scale PV plant typically comprises PV arrays, DC combiner boxes, DC distribution cabinets, central inverters, medium-voltage distribution equipment, and grid-interconnection switchgear. Monitoring devices installed at critical points acquire multi-channel DC branch data, inverter operating parameters, and AC-side power-quality indicators. Centralized data aggregation, early-warning functions, and fault tracing help maintain stable and efficient operation across large-capacity plants.

3.2 Architecture for distributed residential and C&I rooftop PV systems





Distributed PV systems are characterized by dispersed sites and relatively small capacities per installation. For these applications, the solution emphasizes precise energy metering and zero-export control. DC multifunction meters and PV zero-export meters measure PV generation, on-site consumption, and grid import/export, while the control system dynamically limits reverse power flow. This supports low-voltage grid-interconnection requirements, revenue accounting, and self-consumption optimization.



4. Solutions for Typical European Applications



4.1 Residential low-voltage grid-connected PV





For residential rooftop systems, the recommended configuration combines a single-phase PV zero-export meter with a DC monitoring meter. The system measures PV generation, self-consumption, and grid import/export; limits reverse power flow in real time; supports compliance with applicable low-voltage interconnection requirements; and enables remote data access and energy-yield reporting.



4.2 C&I low- and medium-voltage grid-connected PV





For factory and commercial-building rooftops, the solution combines multi-channel DC combiner-box monitoring devices, AC/DC multifunction meters, and three-phase zero-export meters. It provides branch-level visibility on the DC side, energy monitoring at the grid-interconnection point, and precise export limitation. Integrated load and consumption analysis helps enterprises optimize energy use, reduce electricity costs, and increase PV self-consumption.



4.3 Medium-voltage PV plants





For small and medium-sized centralized plants and industrial medium-voltage PV projects, high-accuracy AC multifunction meters and PV monitoring terminals provide power-quality analysis, load monitoring, equipment diagnostics, and plant-wide data aggregation. These functions support refined O&M, standardized grid interconnection, and centralized management.



5. Core Hardware Products

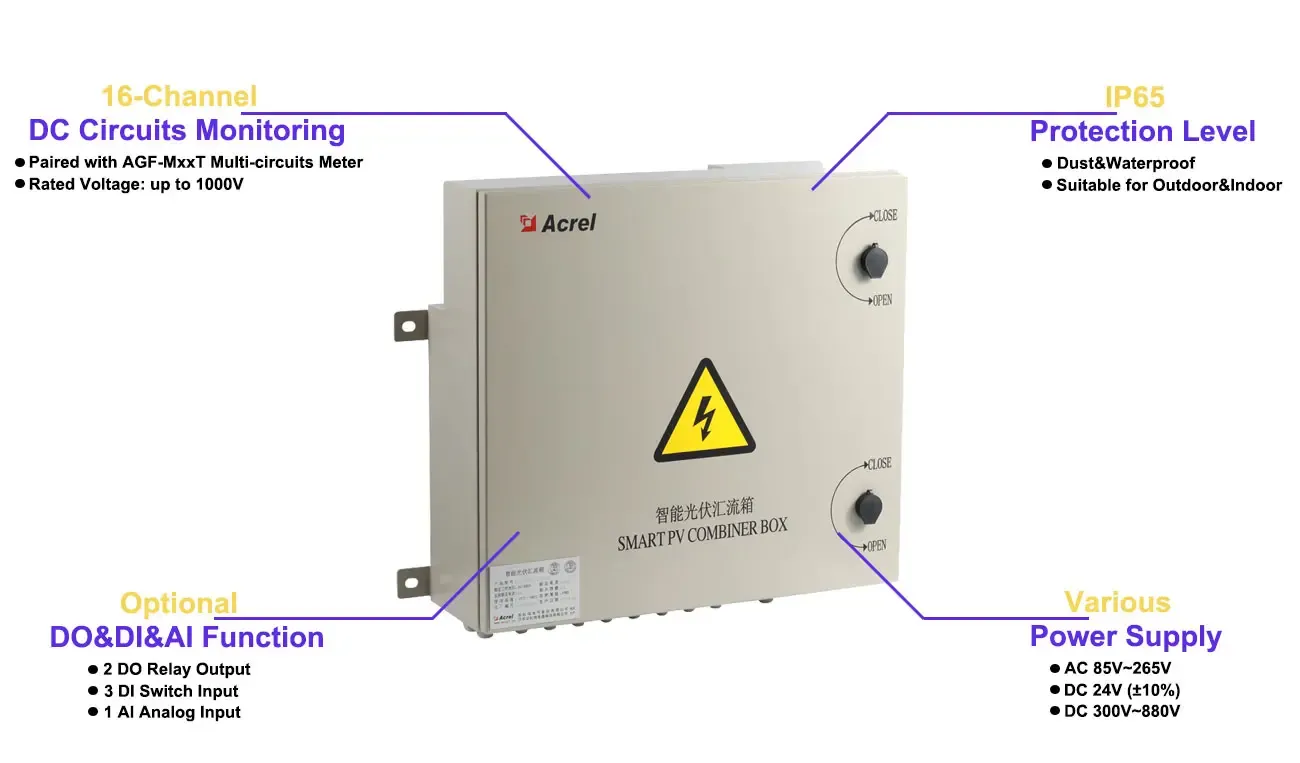

5.1 APV Smart PV Combiner Box





As a key DC-side device, the APV Smart PV Combiner Box combines multiple PV strings and monitors string current, voltage, temperature, and operating status in real time. Integrated overcurrent, overvoltage, and surge-protection functions help isolate branch-level abnormalities, prevent localized faults from degrading overall plant performance, and improve system reliability.

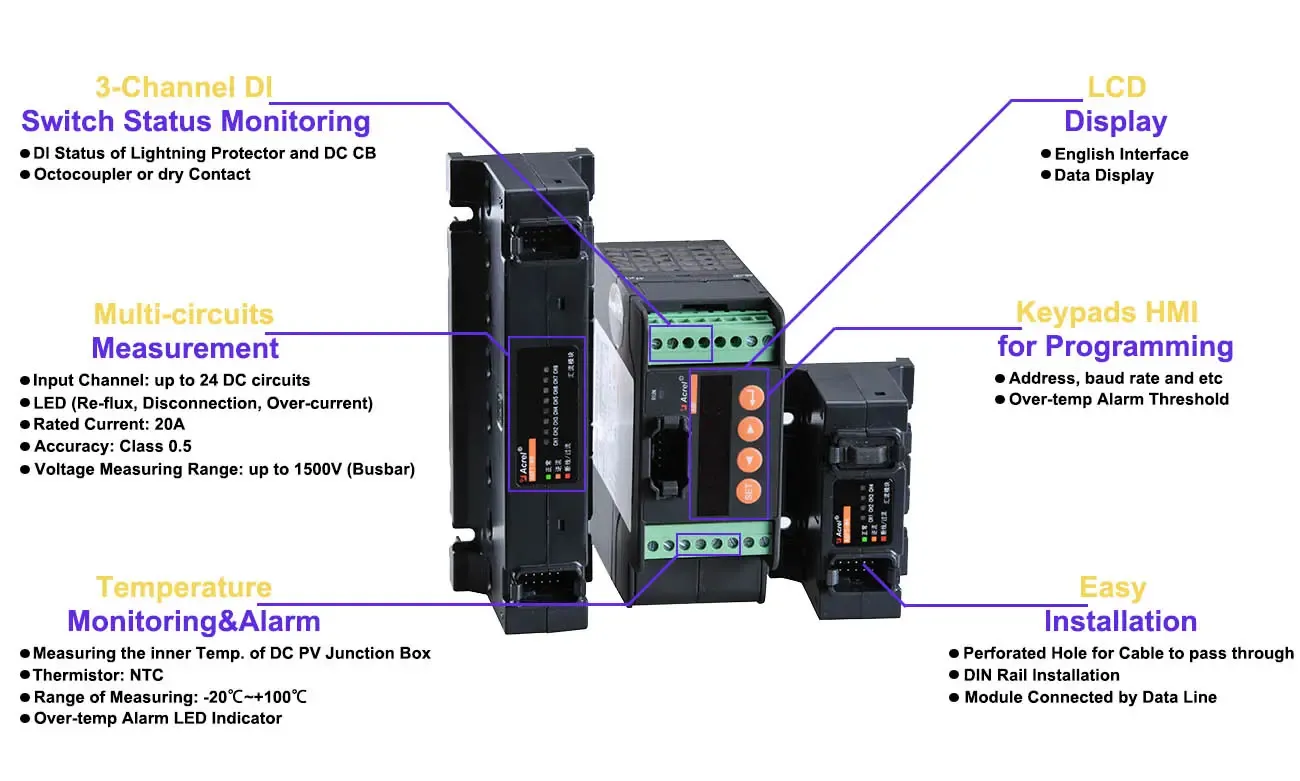

5.2 AGF-MxxT Multi-Channel DC Monitoring Device







Designed for multi-channel DC monitoring in PV combiner boxes, the AGF-MxxT supports simultaneous, high-accuracy acquisition of current and voltage across multiple channels and offers strong immunity to electrical interference. It is suitable for both utility-scale and distributed PV systems, enabling rapid identification of abnormal branches and more efficient troubleshooting.

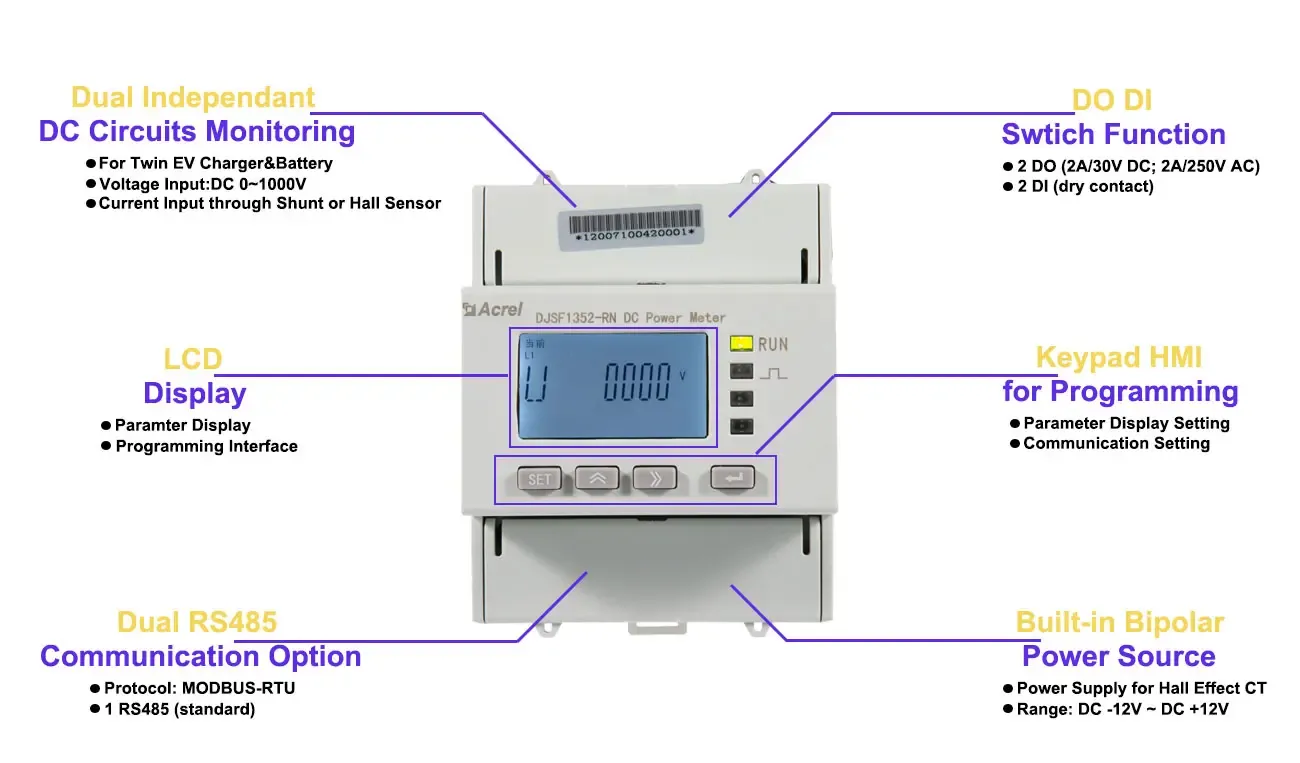

5.3 DJSF1352-RN DC Multifunction Energy Meter





The DJSF1352-RN is designed for DC-side metering in PV systems. It accurately measures DC voltage, current, power, and cumulative energy. Its compact design and straightforward installation make it suitable for combiner boxes and inverter DC inputs where granular generation data is required.

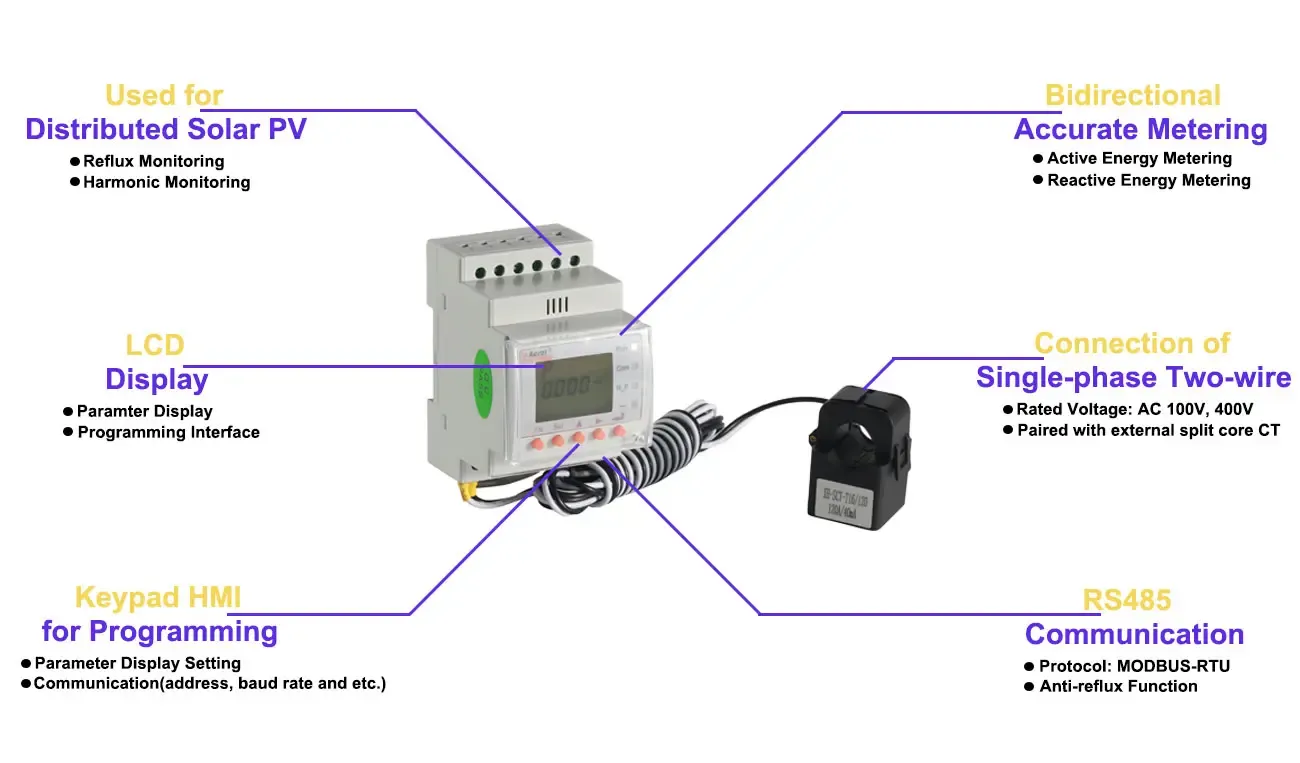

5.4 ACR10R-DxxT Single-Phase PV Zero-Export Meter







Designed for residential PV systems, the ACR10R-DxxT integrates energy metering with zero-export control. It monitors power flow at the grid-connection point and supports rapid control of reverse power injection, helping residential systems meet applicable low-voltage interconnection requirements while maintaining accurate energy accounting.

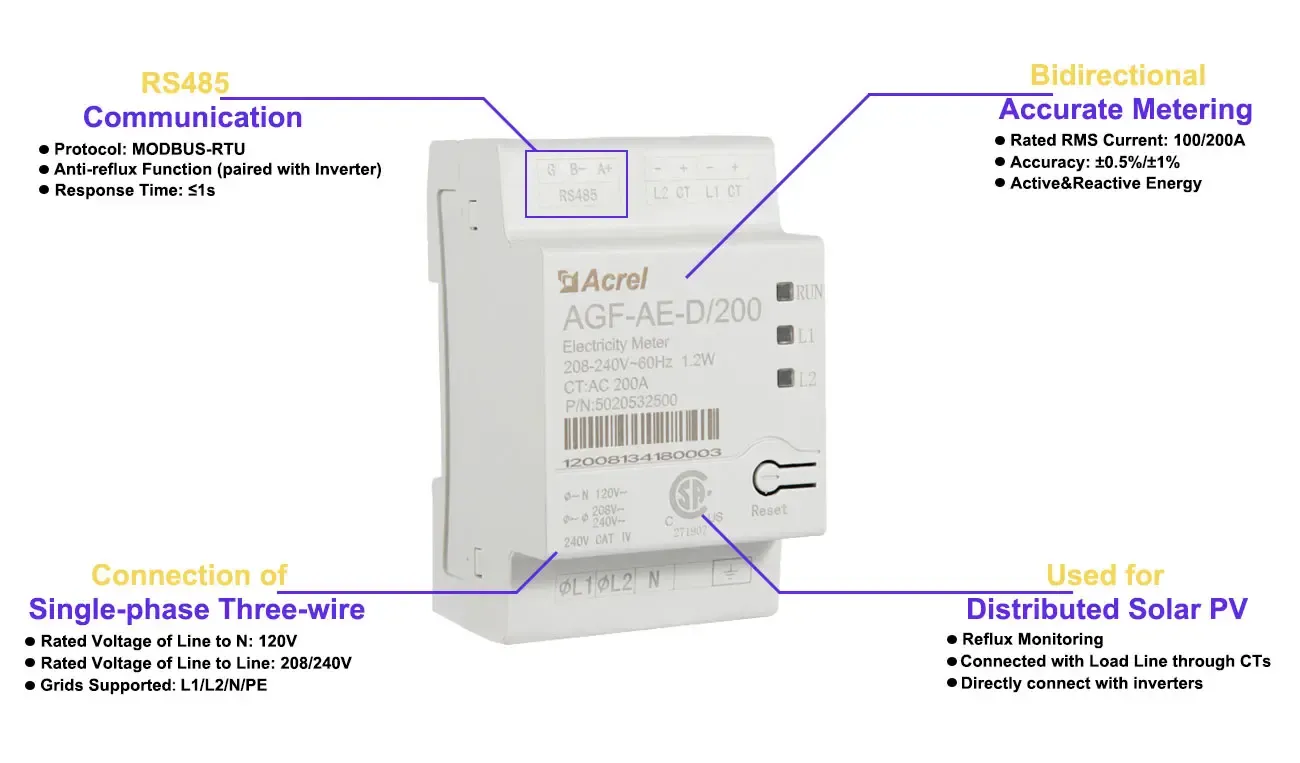

5.5 AGF-AE-D-200 Single-Phase Three-Wire PV Zero-Export Meter





The AGF-AE-D-200 is designed for single-phase three-wire grid-connected applications. Its fast response and high measurement accuracy address power-flow monitoring and metering requirements under this wiring arrangement, supporting compliant operation of small distributed PV systems.

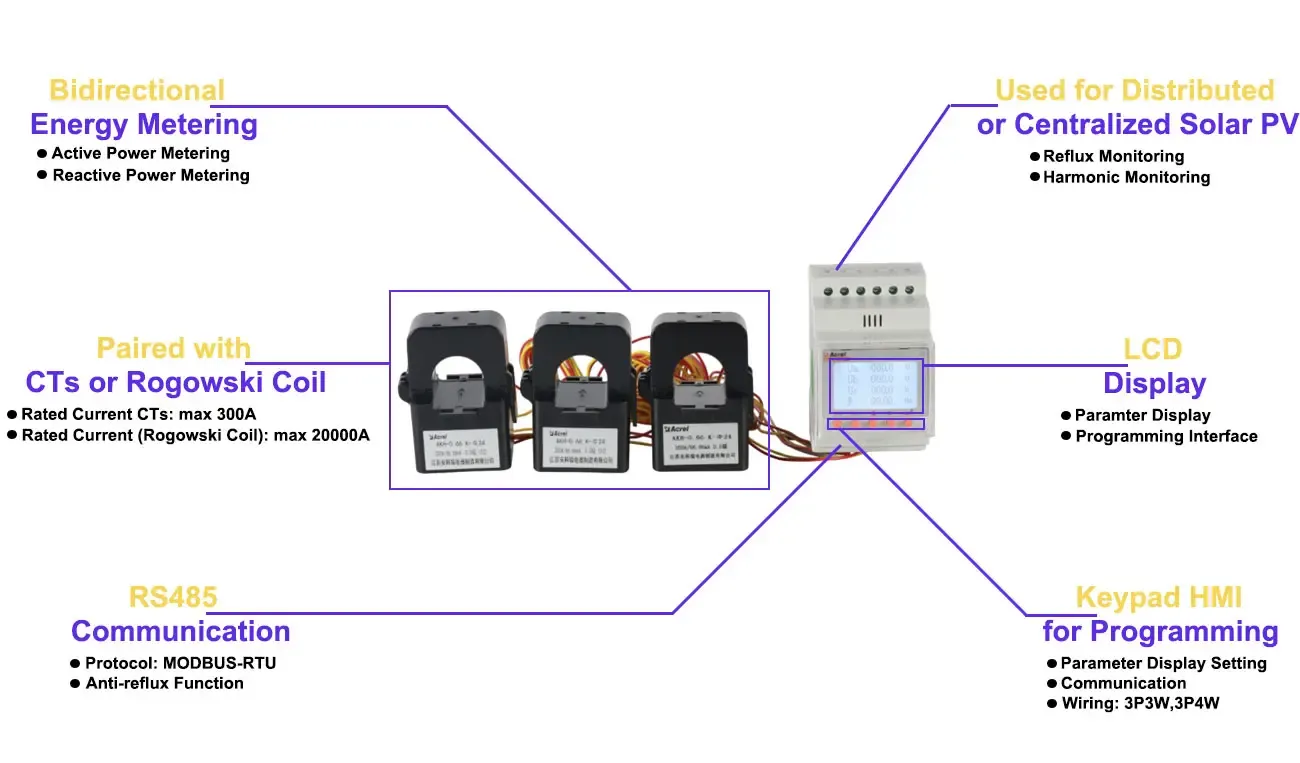

5.6 ACR10R-DxxTEx Three-Phase PV Zero-Export Meter





Developed for three-phase C&I PV systems, the ACR10R-DxxTEx measures comprehensive three-phase electrical parameters and supports intelligent reverse-power limitation. It helps prevent unintended export and associated voltage or power-quality issues at the PCC.

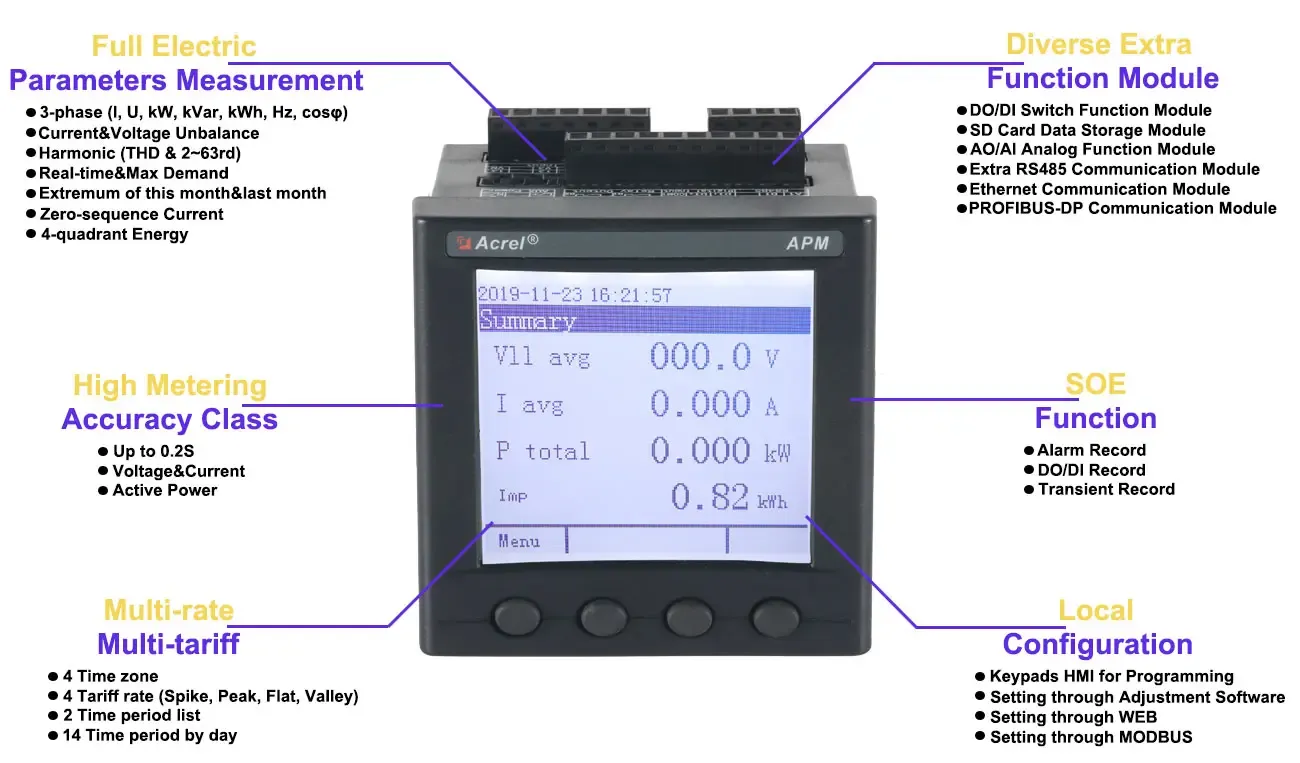

5.7 APM8xx Series AC Multifunction Smart Energy Meters





The APM8xx series provides AC-side monitoring for medium- and large-scale PV installations. It measures voltage, current, active and reactive power, power factor, harmonics, and other key electrical parameters. Remote communications and alarm functions support power-quality monitoring, energy reporting, and plant O&M.



6. Key Solution Advantages



Compared with standalone monitoring devices, Acrel’s integrated PV solution offers the following advantages for European applications:

·

·

· 1. End-to-end, multi-scenario coverage: The solution covers DC generation, power distribution, and AC grid connection, and can be adapted to residential, C&I, and utility-scale ground-mounted PV installations.

·

· 2. Precise zero-export control: Dedicated meters and control logic detect and limit reverse power flow rapidly, supporting compliance with project-specific grid-connection requirements and reducing the risk of penalties or disconnection.

·

· 3. Intelligent O&M and lower lifecycle costs: Continuous monitoring, proactive alarms, and branch-level fault localization reduce manual inspection requirements, shorten troubleshooting time, and minimize generation losses.

·

· 4. Unified data visualization and analysis: Generation, consumption, and grid import/export data are consolidated on a single platform for performance analysis, energy-efficiency assessment, and revenue reporting.

·

· 5. Enhanced electrical safety: Continuous monitoring of electrical parameters and equipment temperature provides early warning of overheating, short circuits, and other abnormal conditions on both the DC side and at the grid interconnection.



Conclusion



As Europe’s PV market matures, the focus is shifting from capacity expansion alone to efficient O&M, higher self-consumption, and compliant grid integration. Disconnected monitoring devices and plant-level energy totals are no longer sufficient. By combining purpose-built PV monitoring hardware, granular data acquisition, intelligent alarms, and zero-export control, Acrel’s integrated solution addresses limited data visibility, unintended reverse power flow, complex maintenance, and electrical safety risks. It provides end-to-end support for residential, C&I, and utility-scale PV installations, helping operators improve energy yield, reduce lifecycle costs, and strengthen grid compliance.
